LSMT Crescent Series ECO
Surface Mount Disc Downlight · Driverless · 0.63″ Ultra-Slim

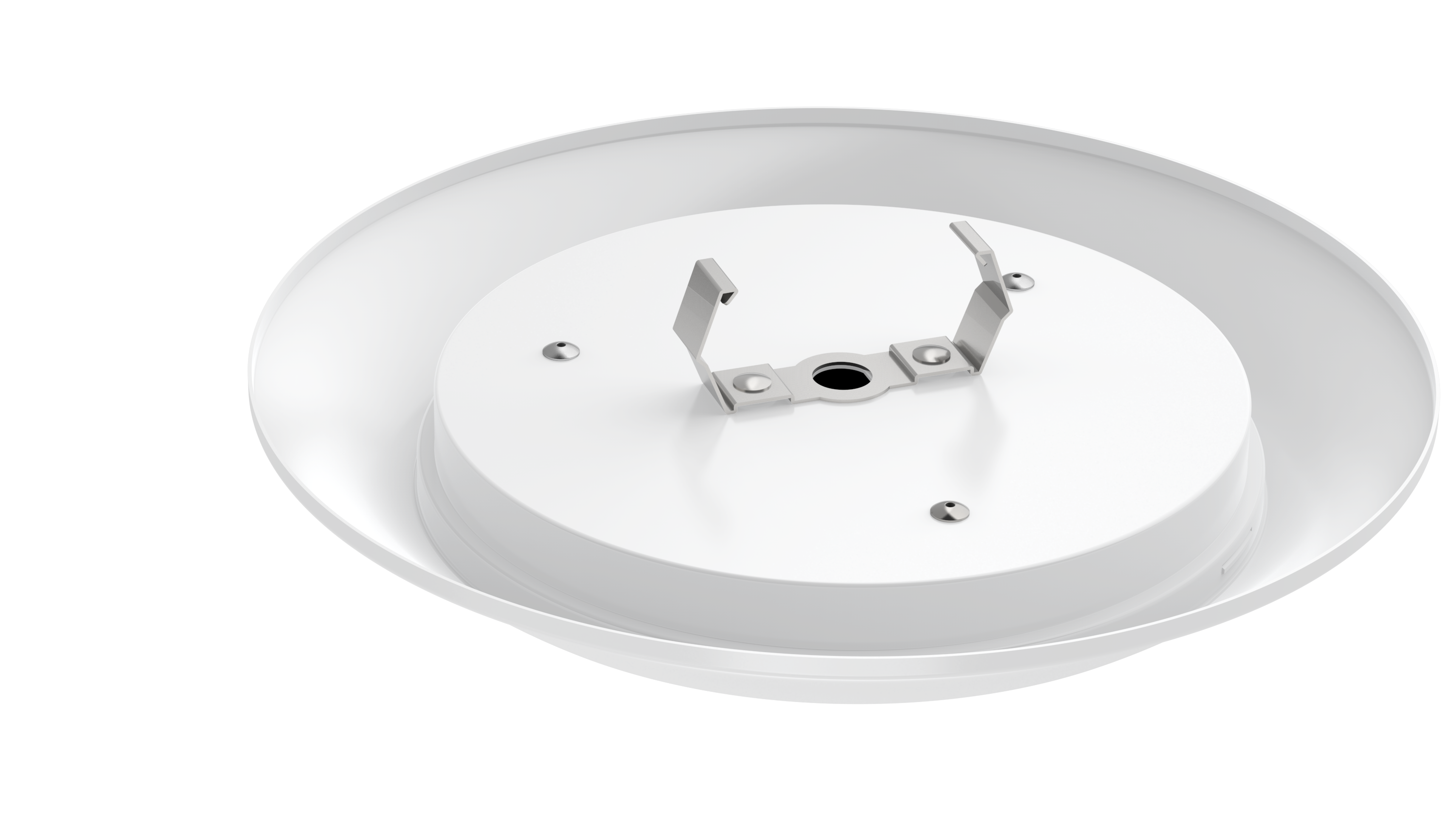

The LSMT Crescent is the entry-tier ECO surface mount disc downlight at the thinnest profile in the multi-family ladder. Hits 103 lm/W at 0.79″ deep. Driverless AC-direct architecture, edge-lit PMMA optic, 5-CCTselect (2700–5000K), CRI ≥90. Five sizes (5″ / 7″ / 9″ / 11″ / 13″), Round + Square. Two finishes (W/B). JA8-2022 / Title 20 / Title 24 / ETL / Damp-listed. Built-in PIR sensor option for true plug-and-play occupancy out of the box.
Model Specifications
Download Data Sheet| Watt | Lumens | lm/W | CCT | Voltage |
|---|
Dimensions
(For the selected size)Highlights & Features
The surface puck that hits 103 lm/W at 0.79″ deep.
Driverless AC-direct · 5-CCT · edge-lit PMMA · truⒶCOLOR™ 90+ CRI · round/square + black/white · IP40 · CA compliance. 1-Pin Bi-Level Sensor in §5.
Total Adaptive Control
The only puck on the market with a 1-Pin Bi-Level Sensor port.

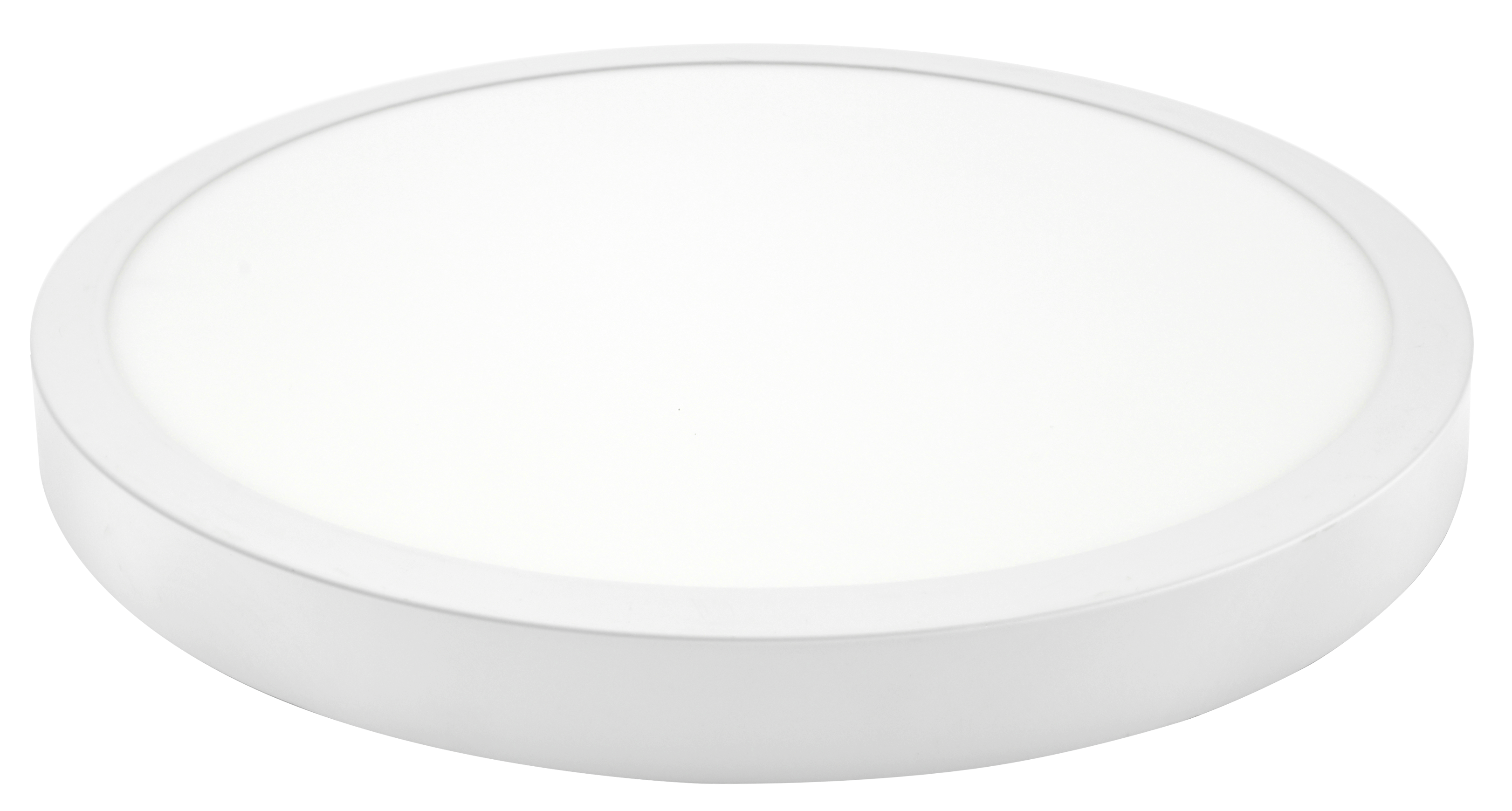

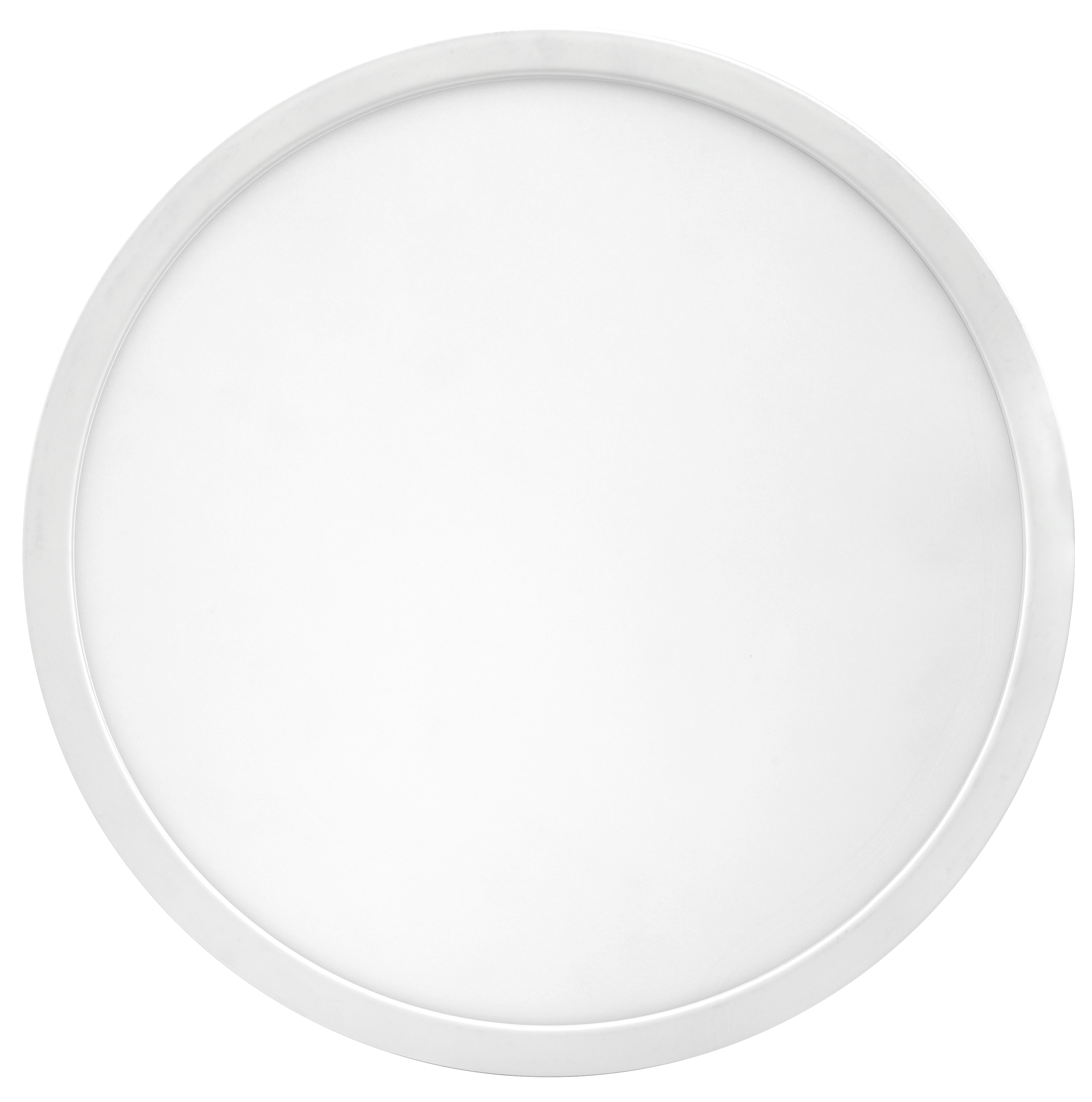

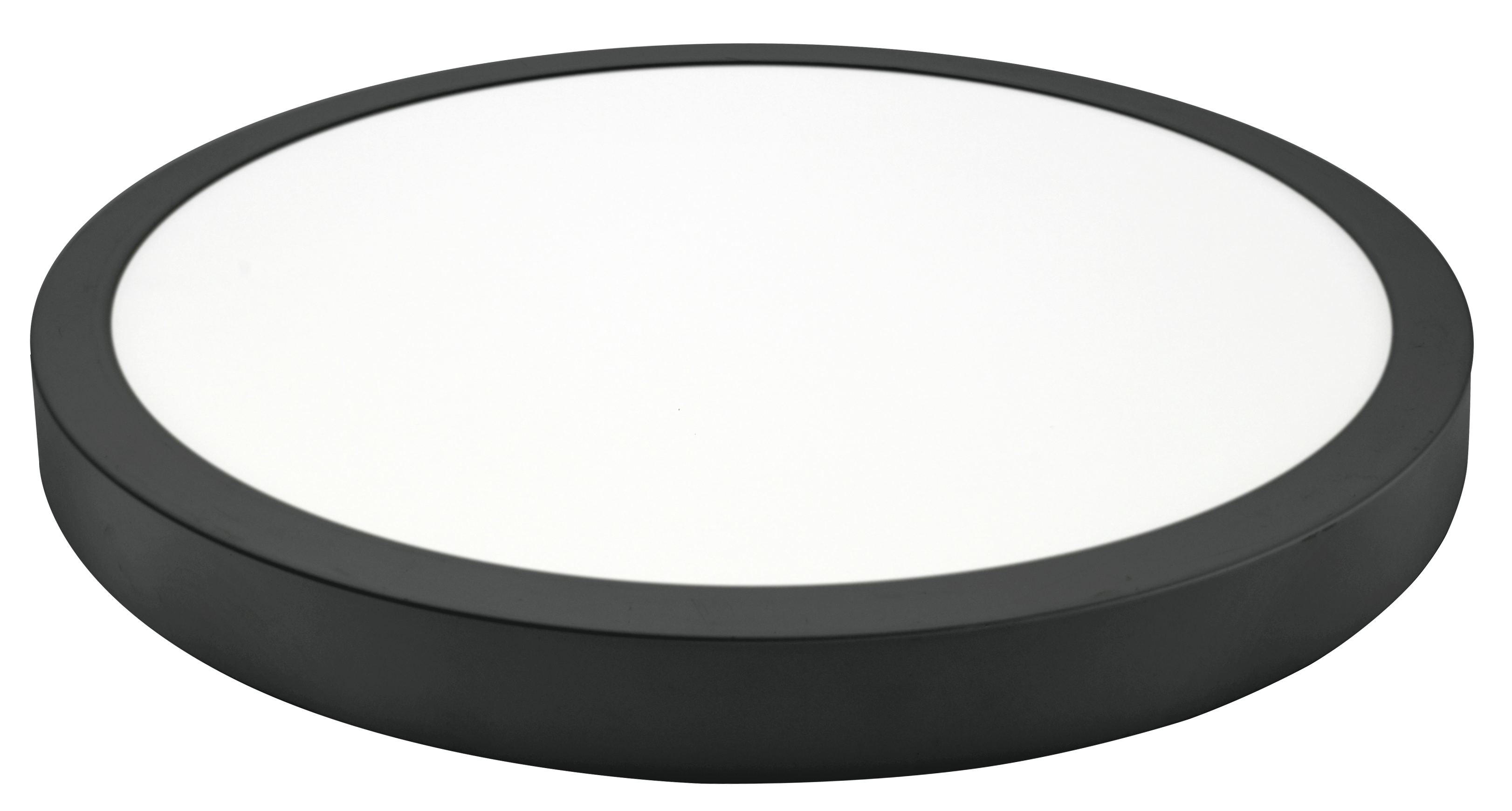

Crescent ships ECO-tier · no built-in PIR. For motion or bi-level corridor compliance, spec the eCrescent /P (built-in PIR · 10s/1min/10min hold) or step up to Eclipse-II (1-Pin Plug-n-Play port for LDLL-E2/MSP/W bi-level sensor · satisfies Title 24 §130.0(c)).

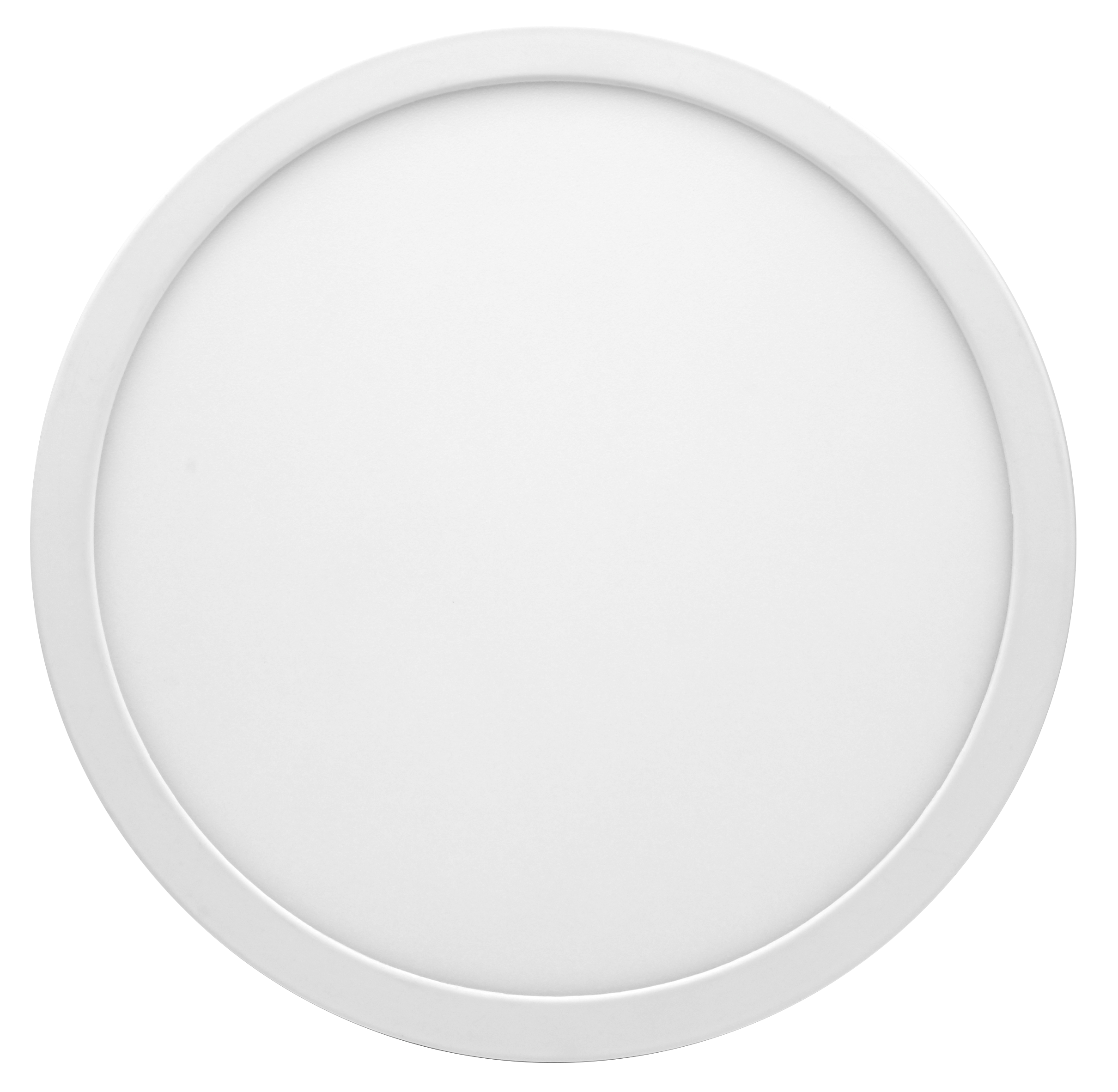

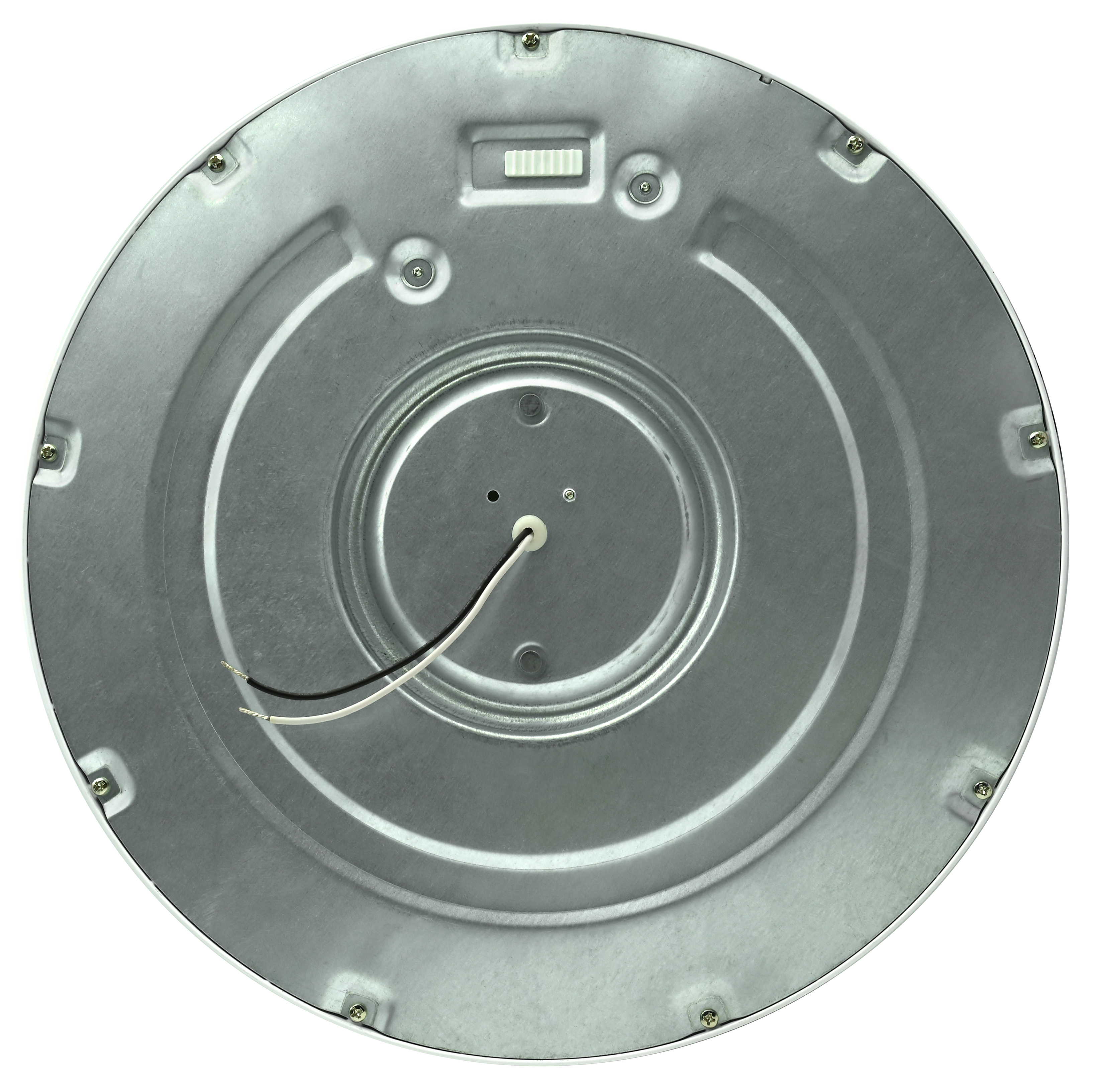

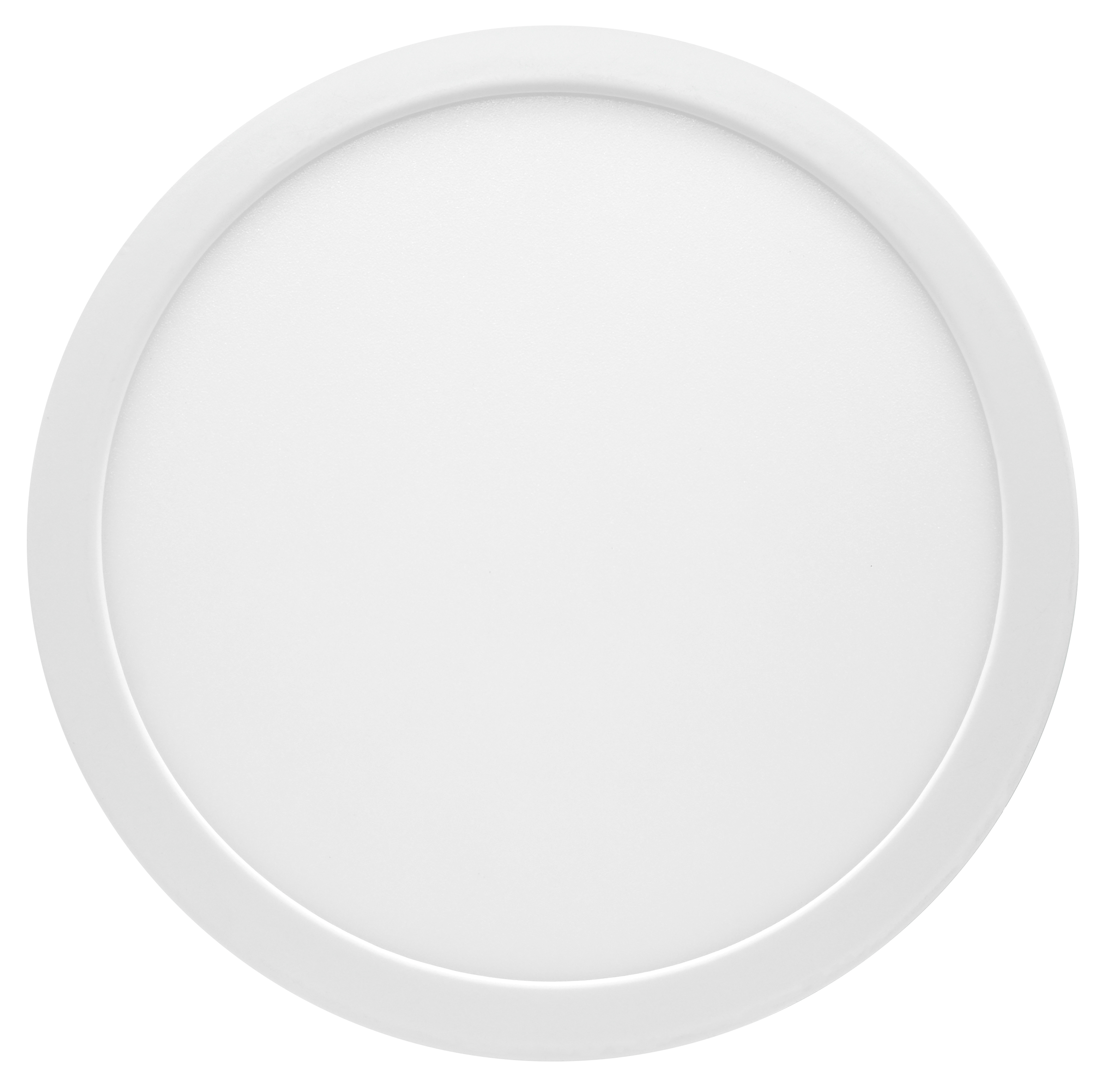

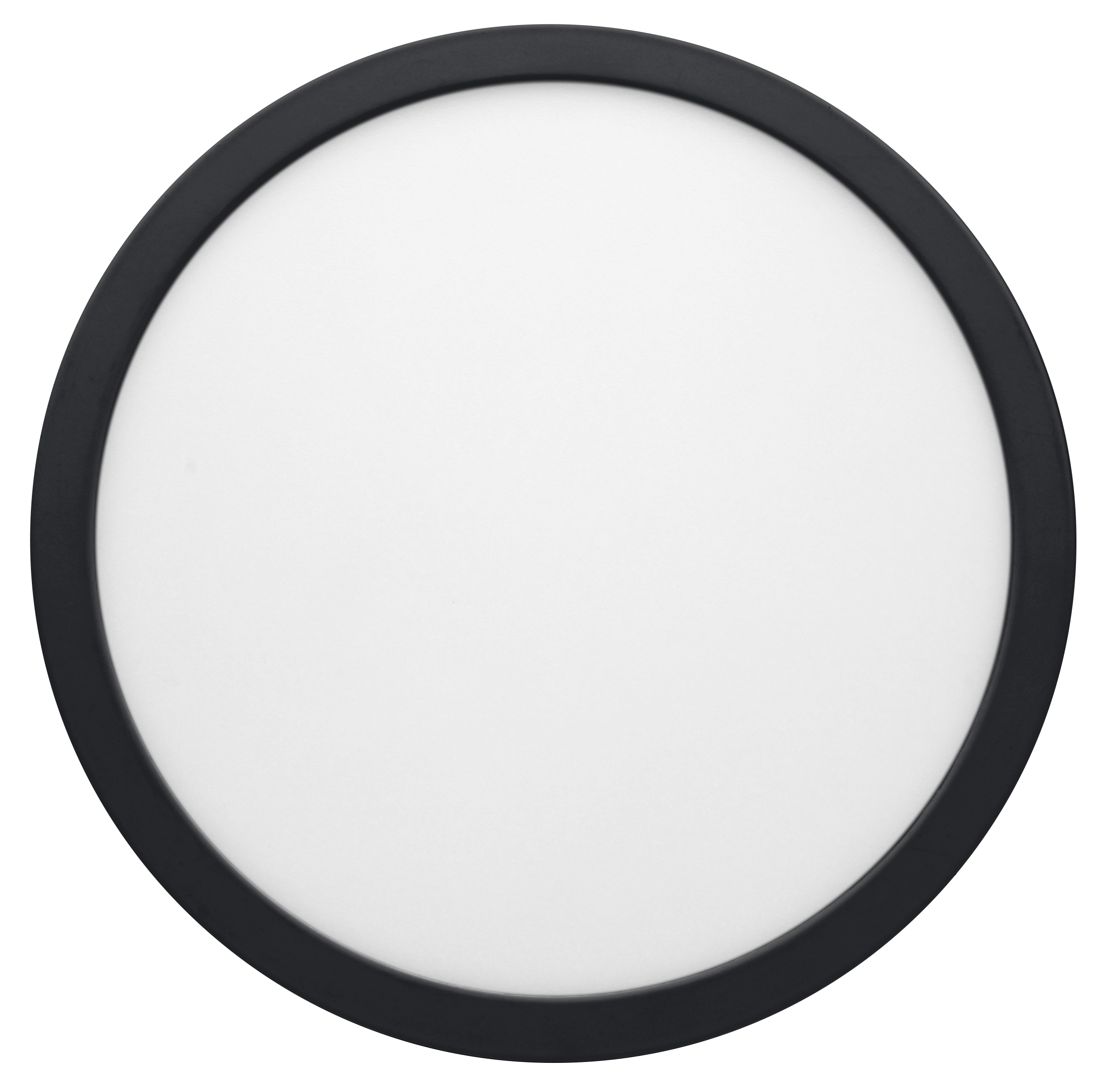

Eclipse-II's 7″ and 9″ models include a dedicated 1-pin port on the back housing. Snap in the LDLL-E2/MSP/W sensor module — PIR motion detection, bi-level operation (20% baseline → 100% on motion → time-out back to baseline). Title 24 §130.0(c) corridor compliance with no electrician, no separate switch leg, no line-voltage retrofit. The single-product solution to the most-cited California corridor code requirement.
See all controls & accessories →Photometric Distribution
Wide-flood 120° beam from the edge-lit PMMA optic.
Edge-Lit Technology delivers an even 120° distribution — one beam shape, twenty-five lumen cells (five sizes × five CCTs). Pick the size and CCT below; peak candela, total lumens, and the IES filename update with the selection. Note: the polar plots below are synthesized from the Datasheet lumen matrix using a 120° wide-flood cosine model. The 25 real IES files are on disk and will replace these once the WorkDrive bundle URL is registered.
LDLL0918-E2-4000K.IES
The Crescent ecosystem.
Crescent native: LSMT4-KIT / LSMT6-KIT recessed conversion kit · /P SKU adds built-in PIR. constNT EMB + contrLS by CS ladders pair via Eclipse-II / Lunar Eclipse. Same ETL / JA8 / Damp pedigree.
Configure Your Crescent
Selections build the LSMT Crescent SKU live. ★ default · QS QuickShip · 5-CCT on dip (not SKU)
Documentation & Resources
Everything specifiers, contractors, and project managers need to spec, install, and certify the Crescent — from the data sheet on day one to the IES files on the bid sheet to the warranty statement at closeout.
The full multi-fMILY collection.

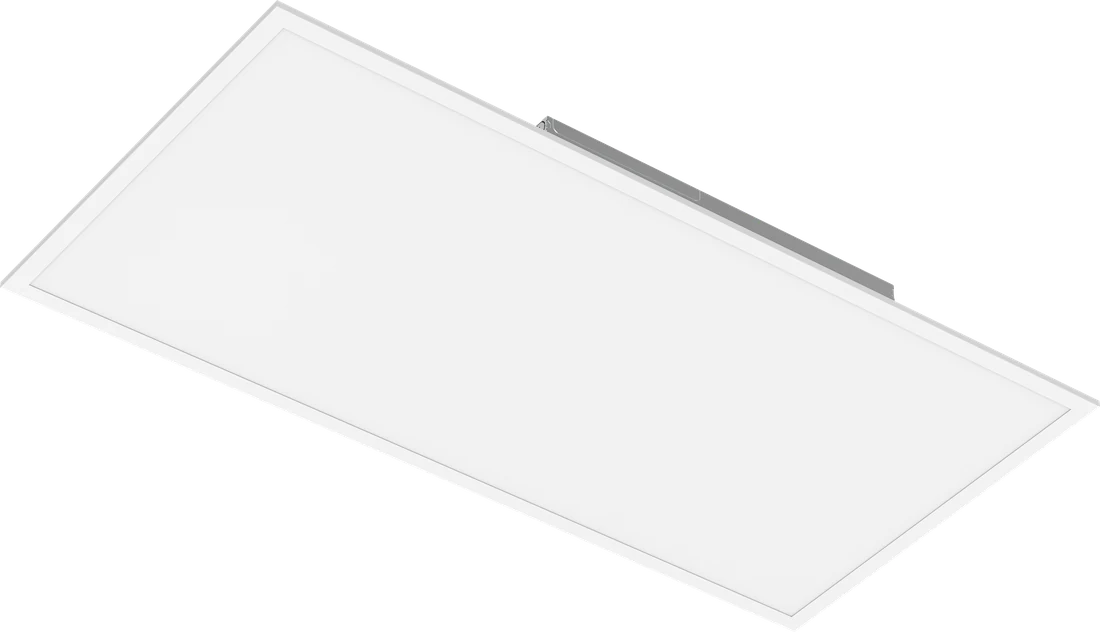

Crescent is one luminaire in a thirteen-product collection engineered specifically for multi-family residential — in-unit living, corridors, baths & wet locations, and common amenity zones. Same factory, same CS controls platform, same JA8 / Title-24 / Damp-Location pedigree across every tier. If Crescent isn't the right fit for a given zone, one of these is.
For the whole property.

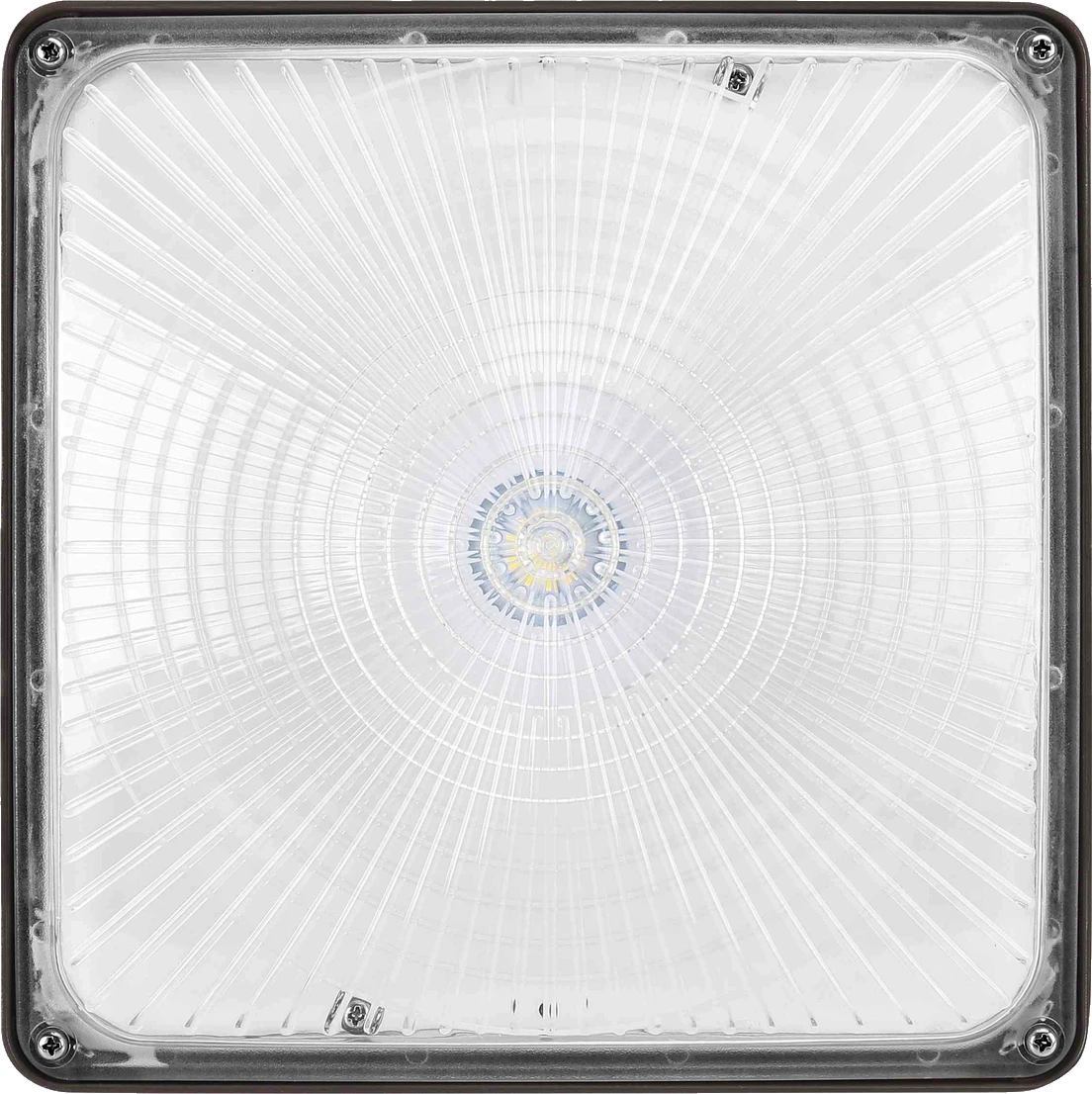

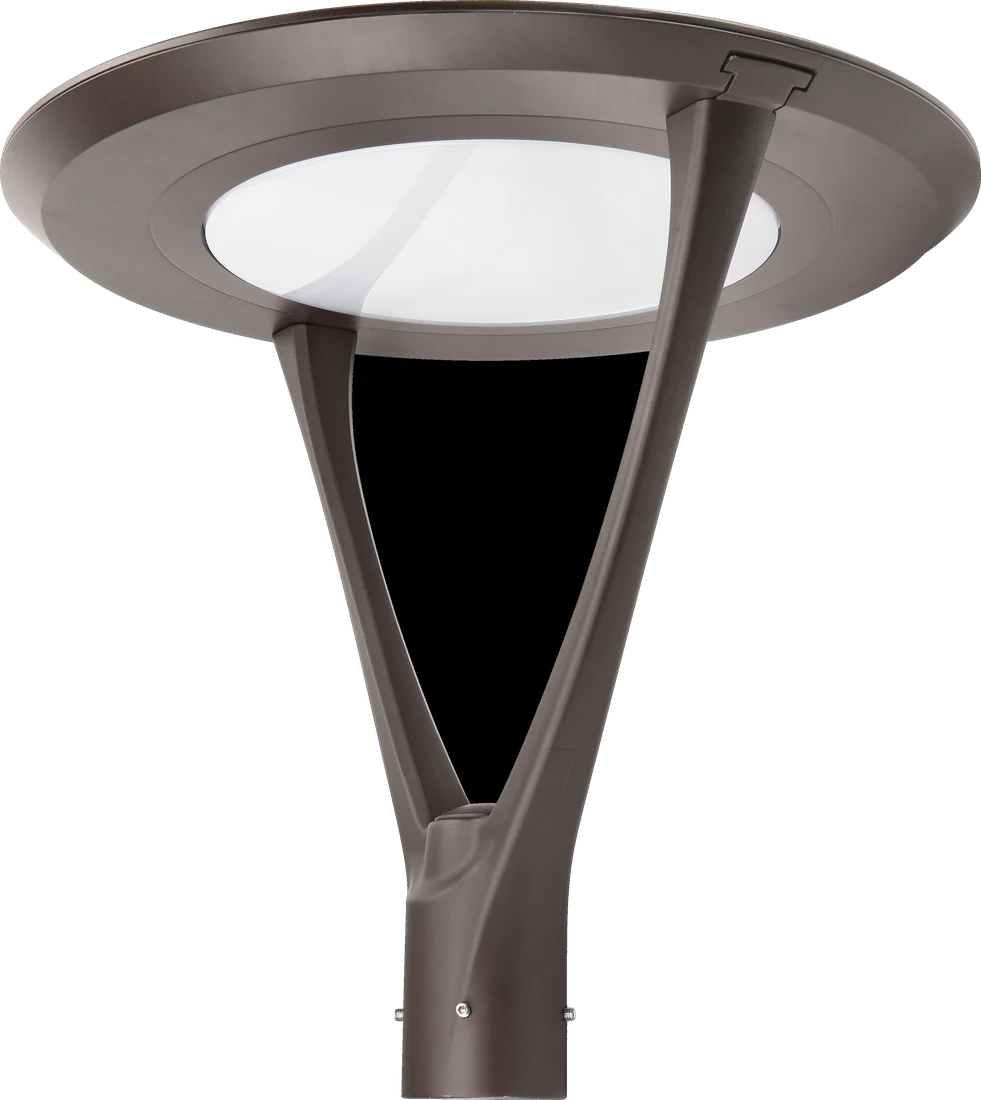

Crescent handles entry-tier in-unit ceilings — closets, pantries, hallways, baths. These cross-line fixtures handle everything else on the property — parking lot, walkways, garage, leasing office — same CS controls platform, same factory, same warranty. Specify them together for a single-source multi-family package.
Built for turn-over speed.
Hundreds of thousands ship from five US warehouses — 2-3 day QS lead means a unit refurb between tenants doesn't wait on lighting. Layouts back in 48 hours, quotes and rebate matches reply same business day. 24-pack contractor cartons standard.
Stack the California rebates.
Crescent is JA8-2022 listed and Title-24 Part 6 compliant — the hooks that unlock CalEnergyWise, PG&E / SCE / SDG&E utility rebates, and HUD multi-family programs. Typical offset on a property-wide retrofit: 20-50% of fixture cost. We'll match your APN and pull the paperwork.
