LHMF · OmniMax PRO+
Re-aim high-mast light in minutes: 165° rotation, service-friendly access.

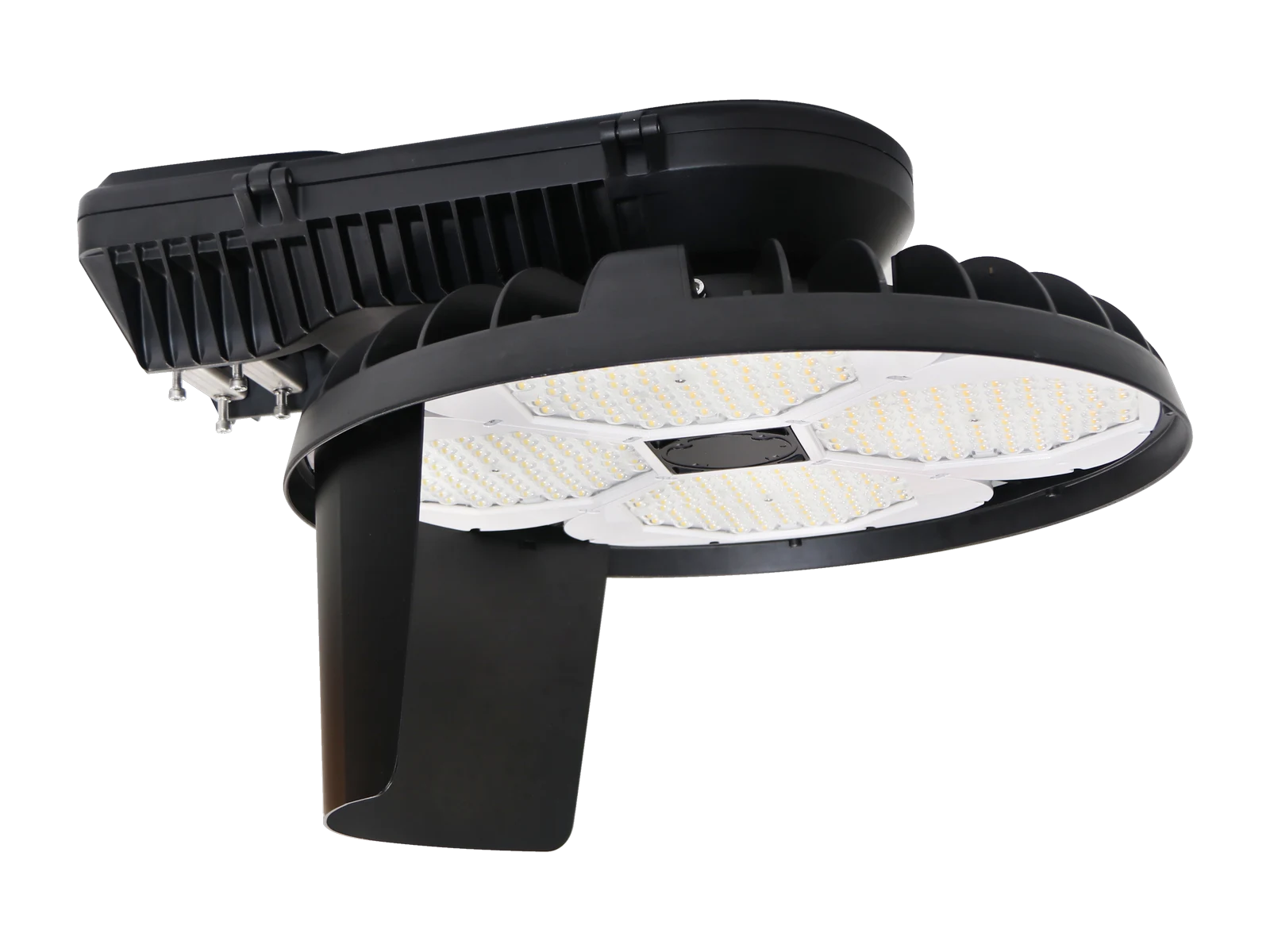

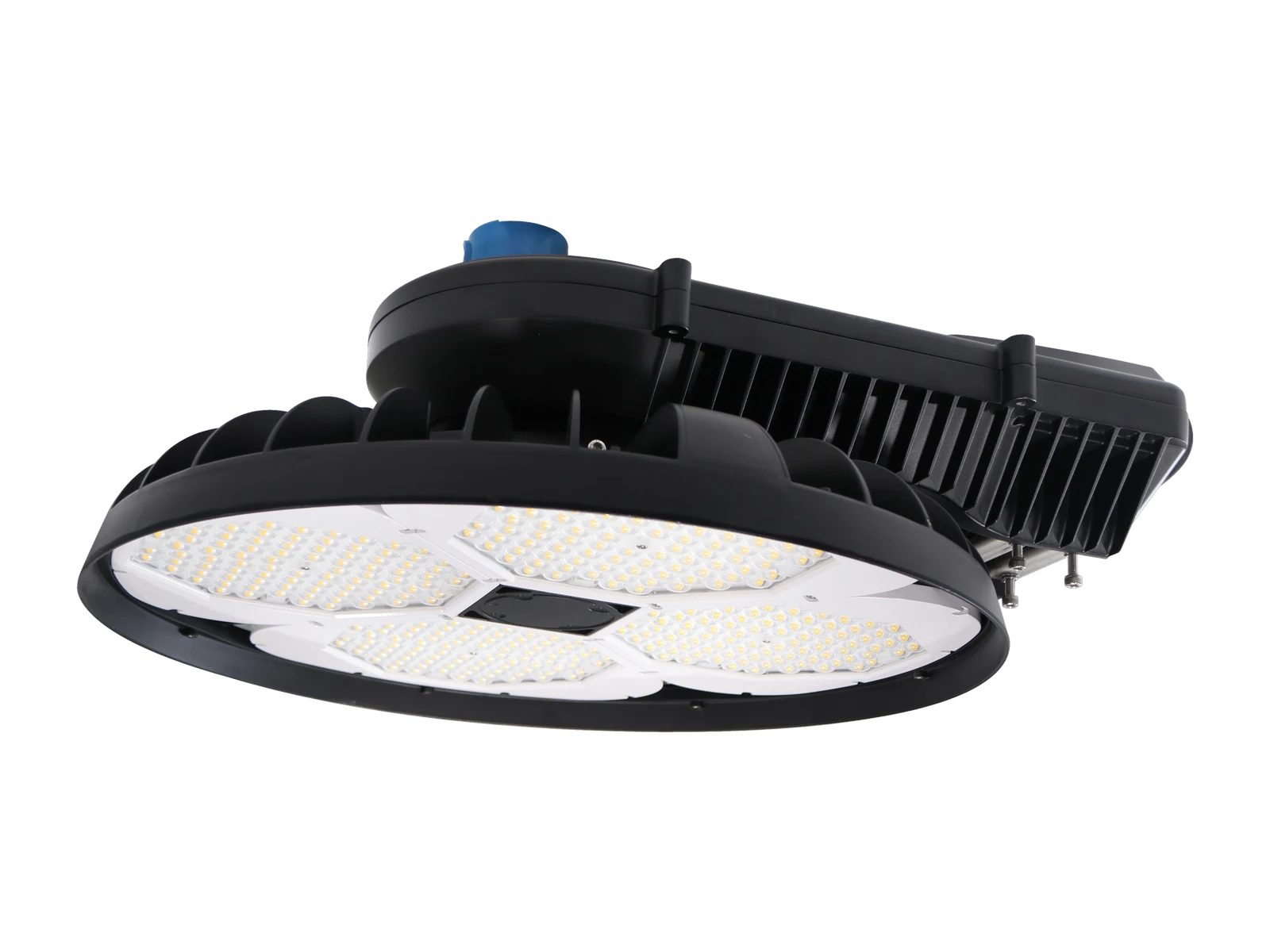

OmniMax is the cityⒶRCH PRO+ high-mast luminaire for ports, container terminals, highways, rail yards, and airports. Up to 107,250 lm at 143 lm/W — top of the spec-grade tier. The 8-step WATTSELECT dial fields output 25–100% of class max. The optical assembly rotates 165° left-to-right — a configuration no peer high-mast offers. 10-year warranty on 24/7 duty.
Model Specifications
Download Data Sheet| Watt | Lumens | Efficacy | Distribution | CCT |
|---|
Anatomy

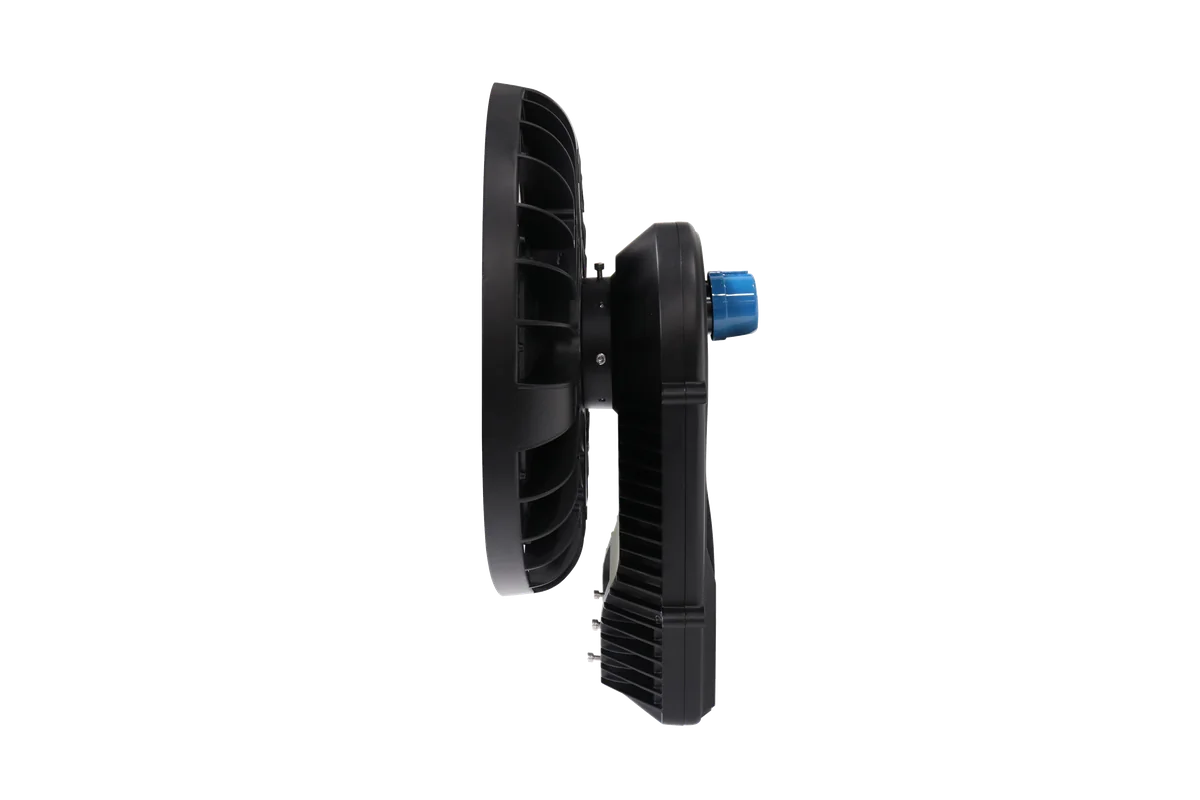

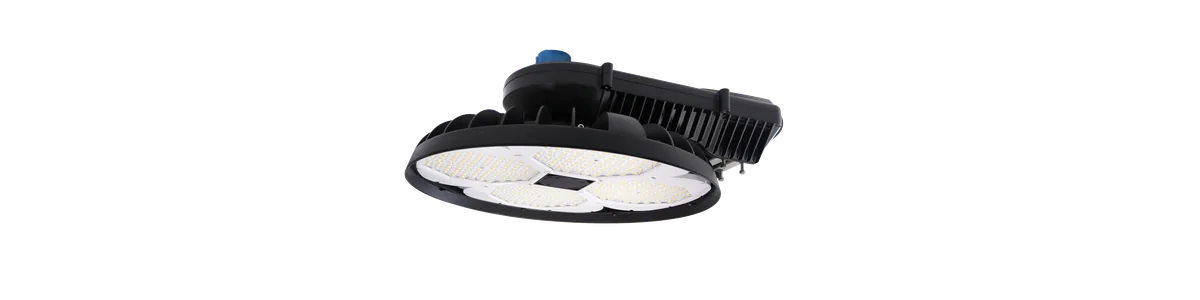

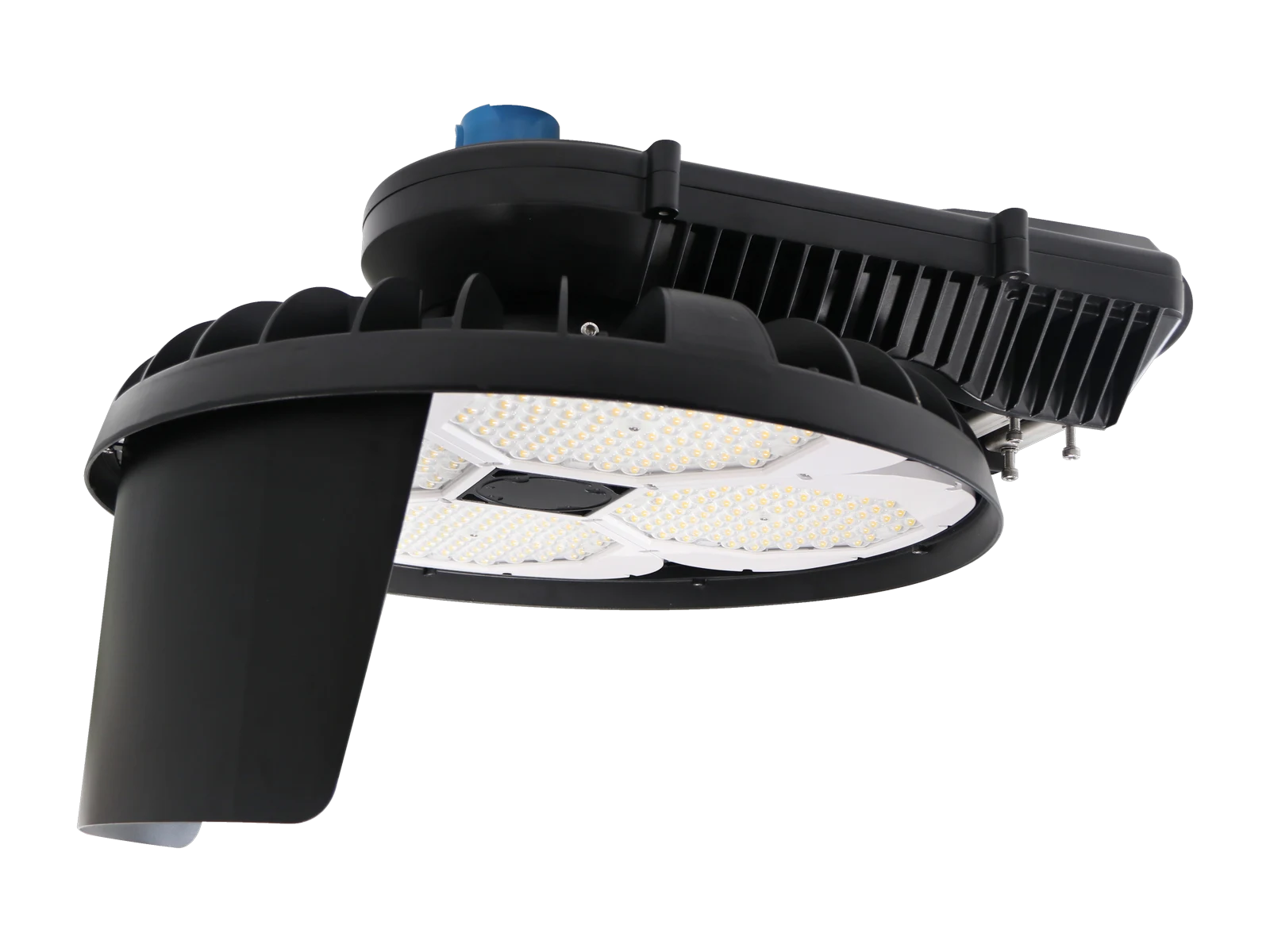

(Quick reference · 165° rotation pivot + Ø42-60mm mast arm · full annotated SVG in Section 7)Highlights & Features
OmniMax: one pole, four fixtures, 360° of coverage.
Five reasons OmniMax wins the spec sheet — unique 165° optical-assembly rotation, 8-step WATTSELECT, 107,250 lm @ 143 lm/W (class-best), 10-year warranty, and IP65 die-cast for ports and highways.
Engineering In Motion
See LHMF · OmniMax in motion.
Five short clips from the LHMF shoot — product reveal, the 5000K Type-V optic top-down, the 165° rotation + 8-step WATTSELECT internals, a single high-mast pole lit at dusk, and the wide port/stadium aerial.
Adaptive Controls
8-step dial. Photocell-ready. 0-10V dimmable.
Behind the access door, an 8-position dial fields output from 25% to 100% of class max — one SKU, eight commissioning points. Every OmniMax housing ships with a 3-pin (ANSI C136.10) twist-lock photocell receptacle on top. Layer in 0-10V class-2 dimming and an optional PIR motion sensor for full dusk-to-dawn schedule + occupancy reduction. No gateway, no mesh, no commissioning app.
8-Step WATTSELECT Dial.
Behind the door, a 1-8 dial commissions the wattage to the IES target — 25/40/50/60/70/80/90/100% of class max. The 750W class covers 200/300/375/450/525/600/675/750W in 8 SKU-free steps. Ship one SKU; commission to any wattage point on the pole. Constant 143 lm/W across all 8 steps.
- Factory default = position 8 (full output)
- Field-commissionable · M6 hex wrench access
- 16 wattage points across both housings (500W + 750W)
Photocell-Ready.

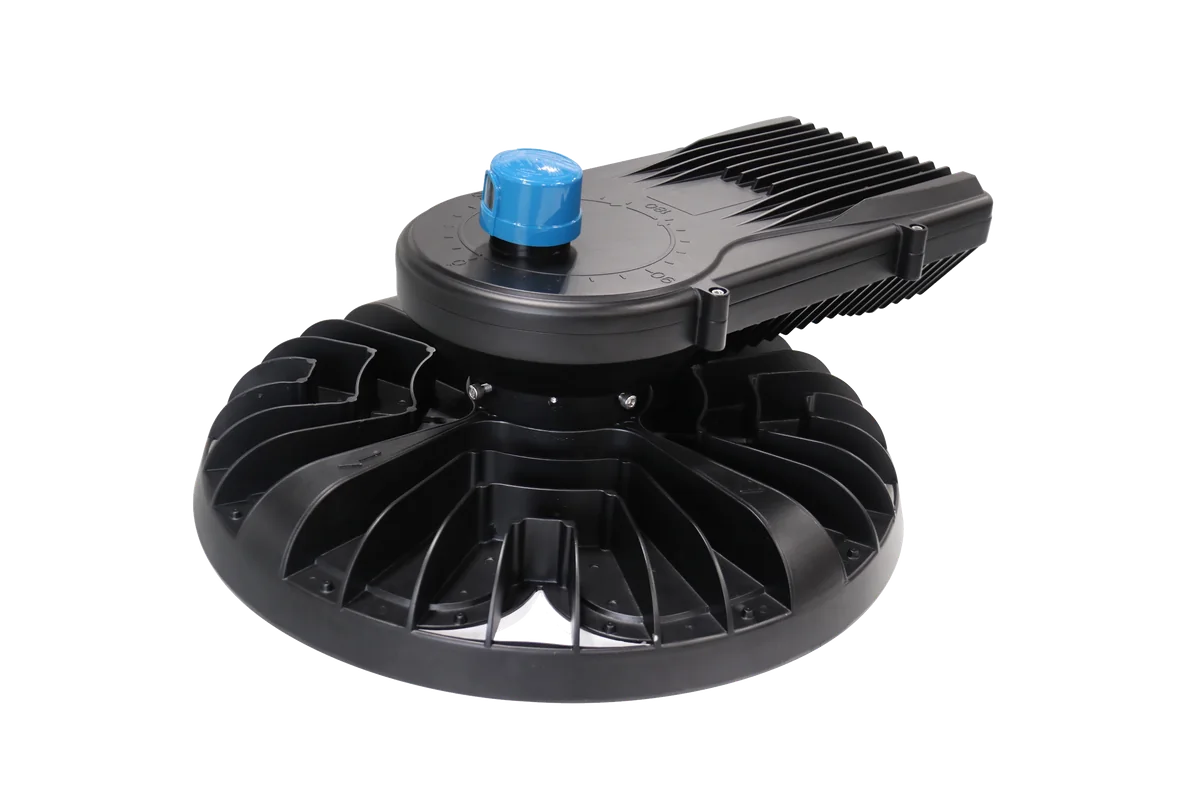

3-pin (ANSI C136.10) twist-lock receptacle on every housing — ships with a shorting cap when no photocell ordered. Add the optional ALG photocontrol (LSBX-L1/PCS/UM3 for 120-277V or LSBX-L1/PCS/HM3 for 277-480V) or any compliant photocell — vendor-neutral by design.
- RB3 · 3-pin twist-lock standard on every SKU
- Optional UM3 (120-277V) or HM3 (277-480V) photocell
- Shorting cap shipped when no photocell ordered
0-10V Dimming + PIR.
Driver supports 0-10V class-2 dimming standard (also accepts 1-10VDC, PWM, or resistance-based). Add the optional integrated PIR motion sensor for dusk-to-dawn occupancy reduction at port terminals, truck stops, and large-area parking. Flicker < 5%, PF ≥ 0.9, THD ≤ 20%.
- 0-10V class-2 std · 1-10VDC / PWM / R-dim accepted
- Optional PIR — bi-level dim on vacancy
- Flicker < 5% · PF ≥ 0.9 · THD ≤ 20%
No mesh, no gateway, no commissioning app. The 8-step dial behind the access door, the photocell on top, and the 0-10V dim pair on the driver — three controls inputs that work with the tools your installer already carries on the truck.
Photometric Distribution
Beam shape, straight from the IES file.
Type-V wide-area distribution rendered directly from the IESNA LM-63 test reports (Belling Test Lab · GPM-3000 · 14m test distance). Peak candela, total lumens, and efficacy update as you switch wattage class and input voltage below — four tested cells across the LHMF8W500 and LHMF8W750 platforms.
LHMF750-4000-120V-5.ies
Engineering · Anatomy
Crown the pole. Tune the wattage. Aim the beam.

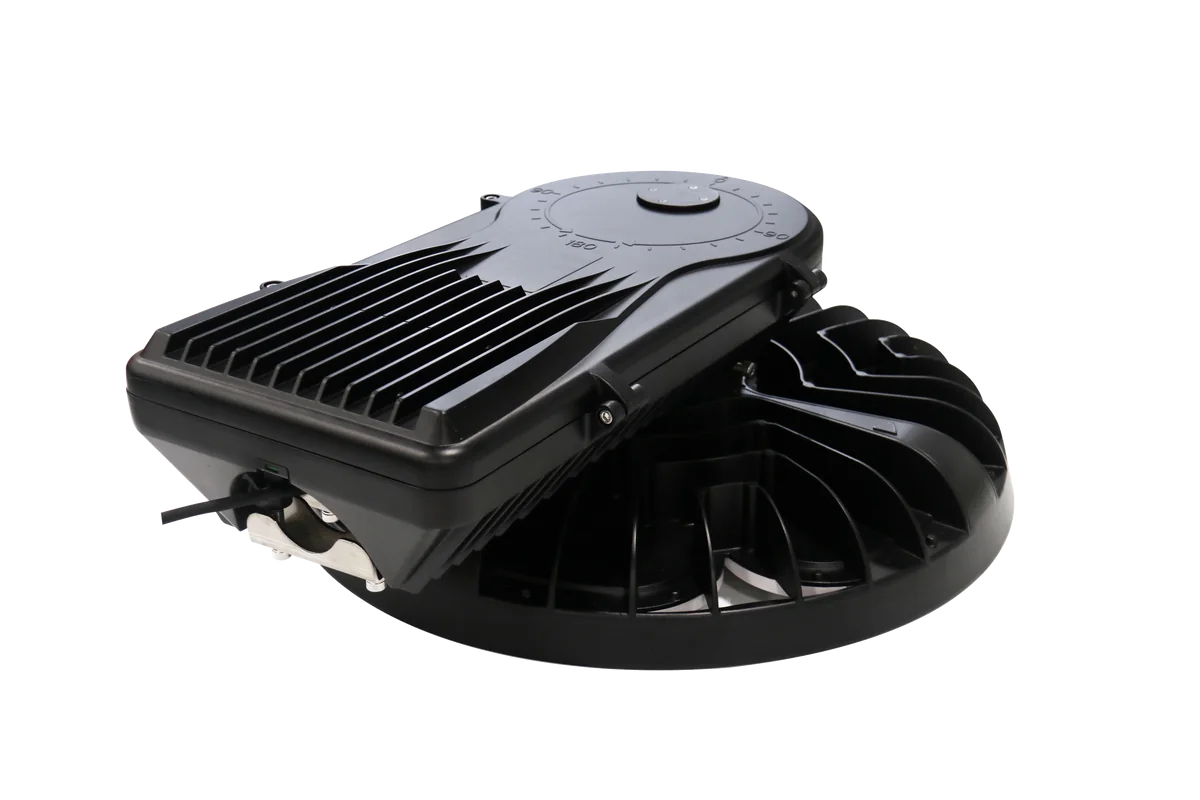

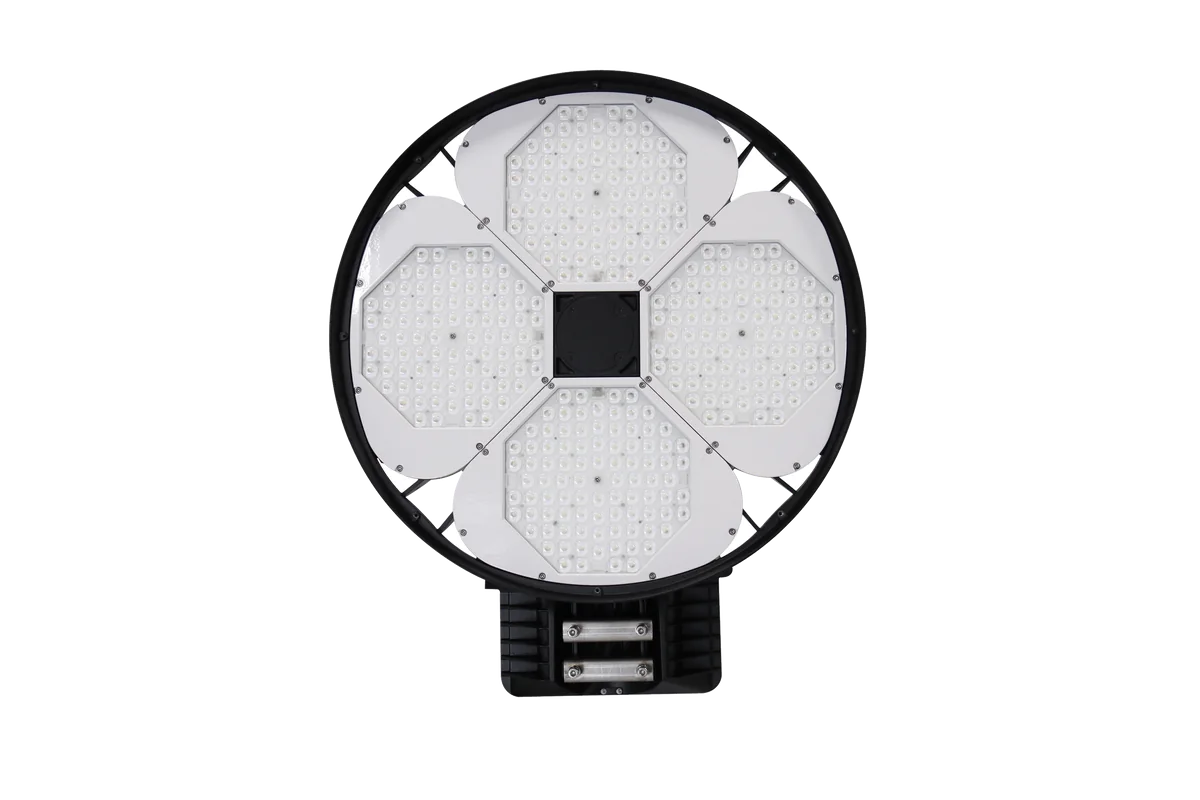

Seven engineering details that make OmniMax the spec-grade choice for ports, highways, rail yards, and industrial campuses — 165° optical-assembly rotation that no peer offers, an 8-position WATTSELECT dial behind the access door, advanced TIR optics with zero uplight, built-in mast-arm leveler, and a wide Ø42-60mm tube range for non-standard pole arms.

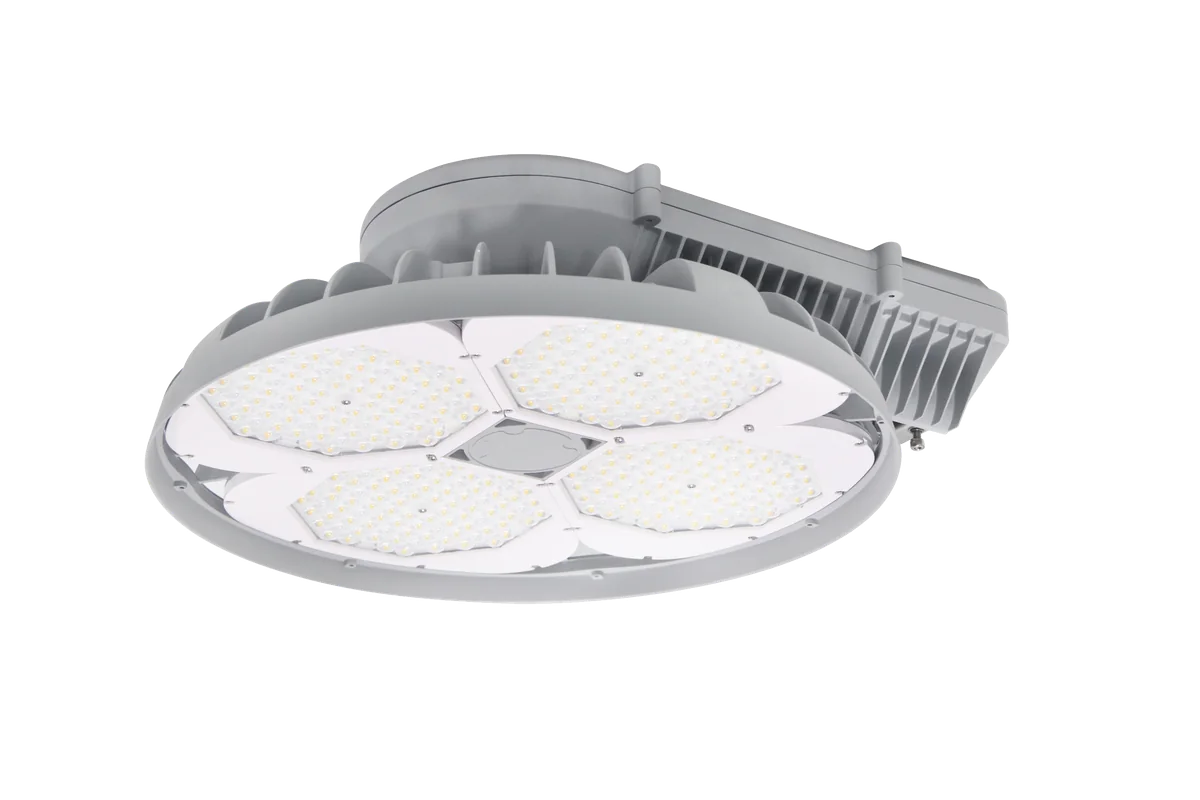

Same disc-form housing platform across LHMF8W500 (500W class) and LHMF8W750 (750W class). Same external profile, same maintenance touchpoints — Black finish on every housing class (Silver MTO on 750W-U-only). Up to four OmniMax fixtures crown a single pole, each rotated independently up to 165° to cover four different sectors from the same mast.
Engineered Accessories

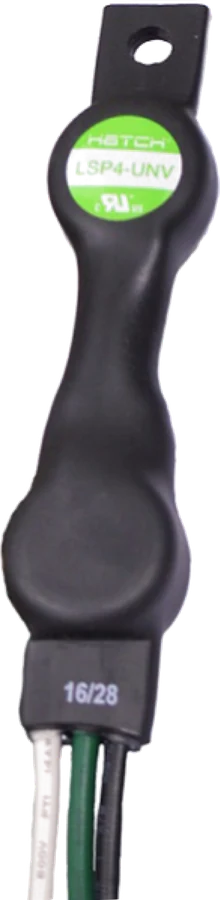

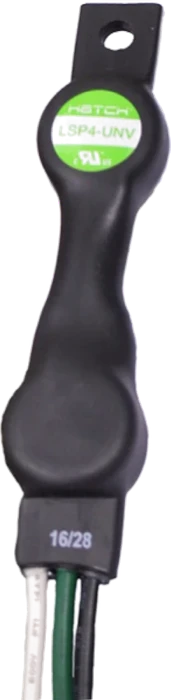

Tune OmniMax to the exact site condition — twist-lock photocells for dusk-to-dawn scheduling on either 120-277V or 277-480V circuits, an optional glare visor for spillage-control on residential-edge sites, and 10kA / 20kA surge protection for utility-corridor and lightning-prone installs.
