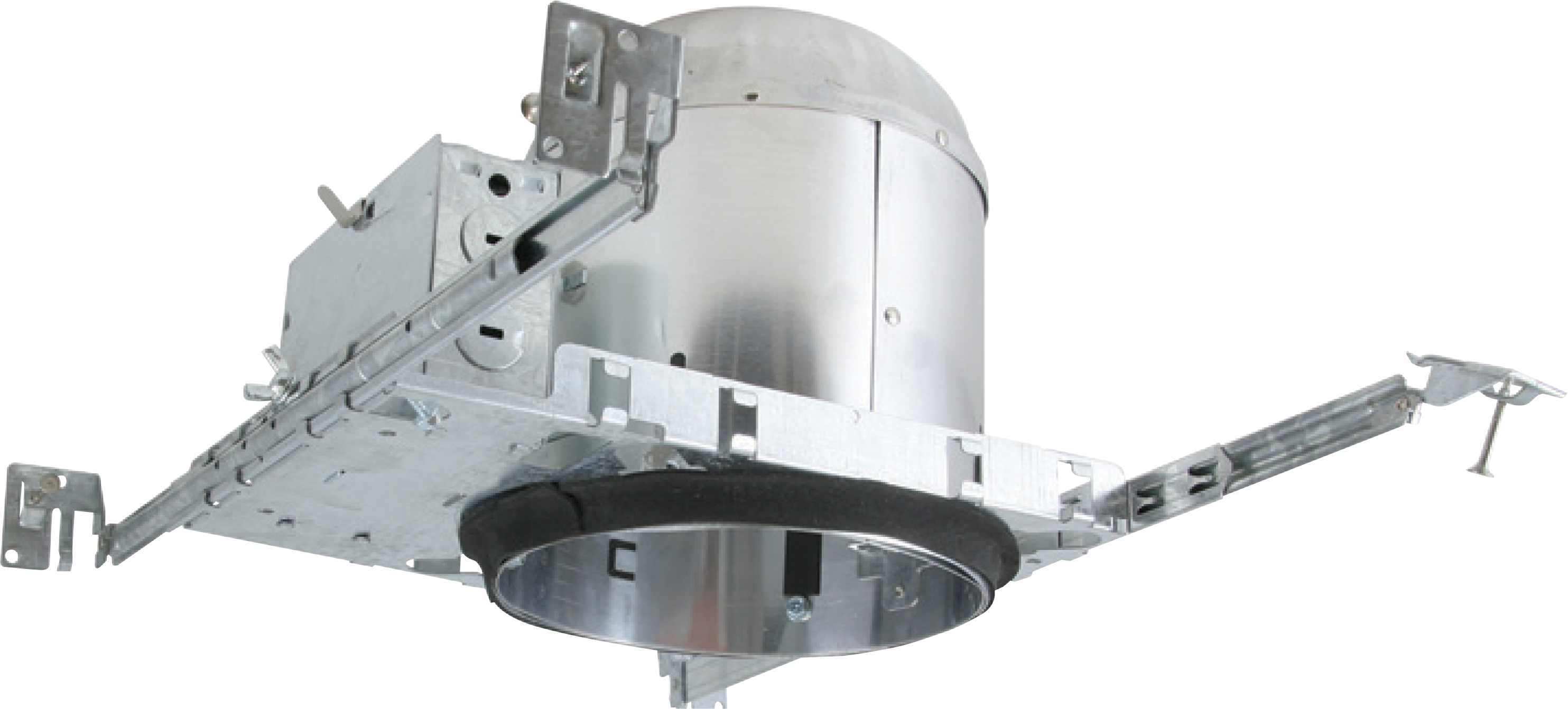

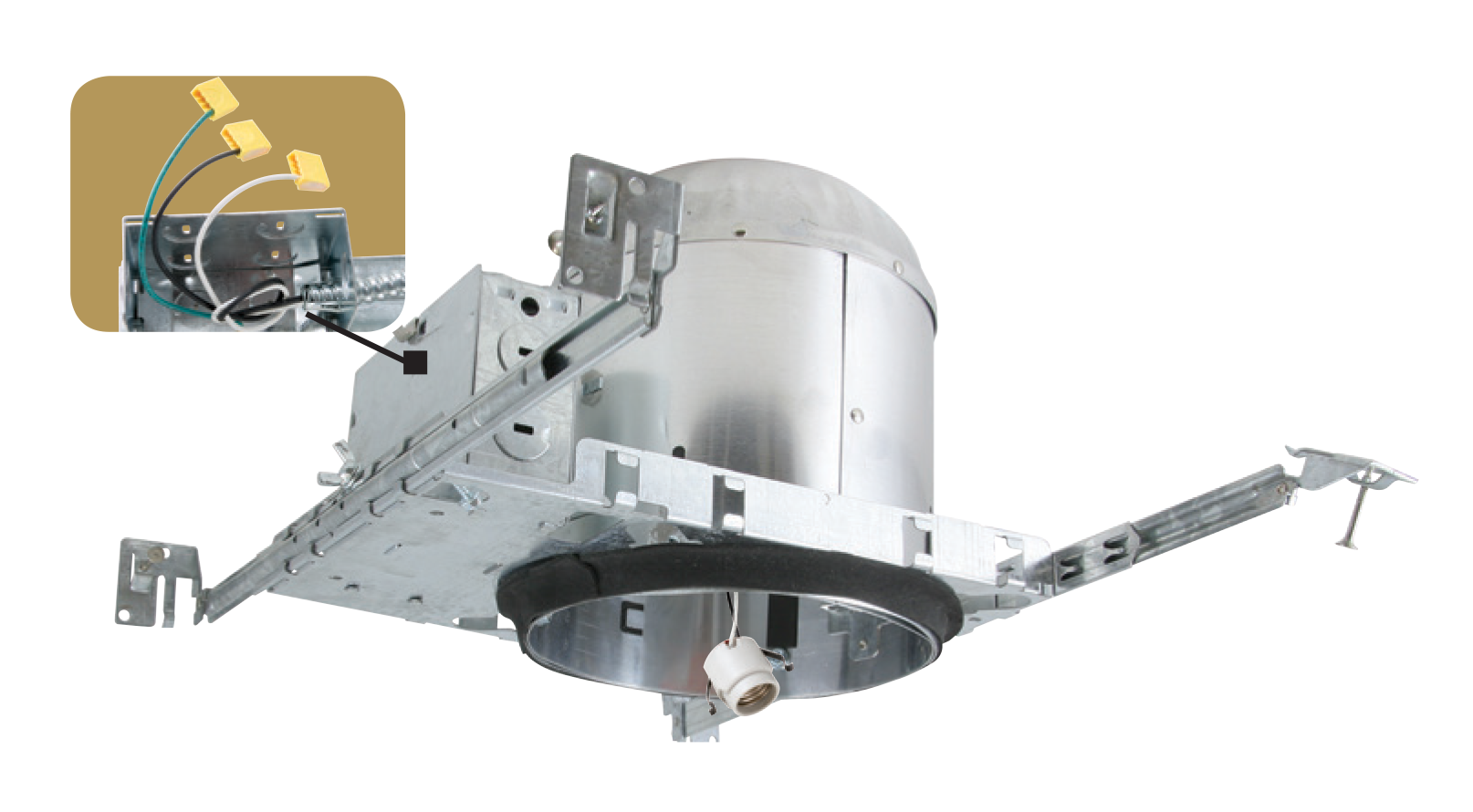

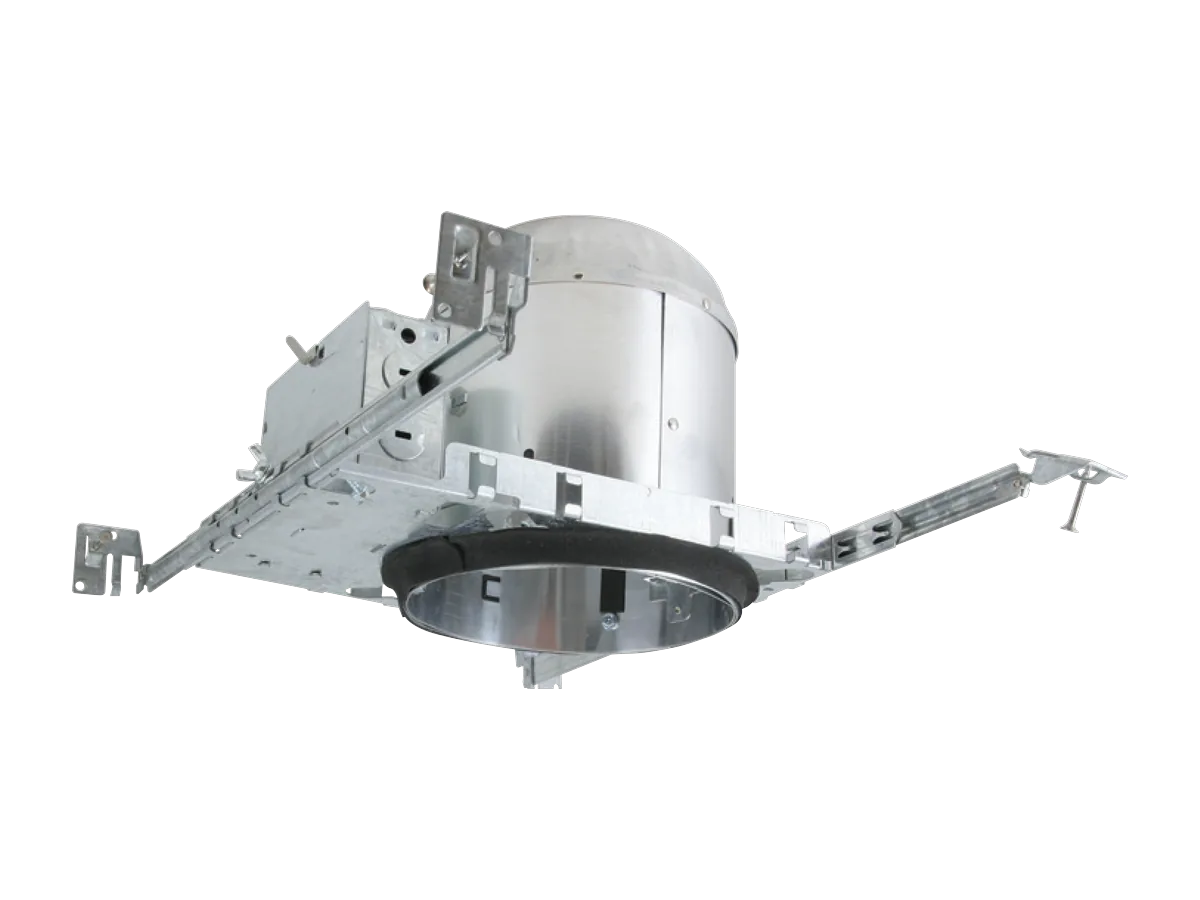

CRC Gehry Series PRO

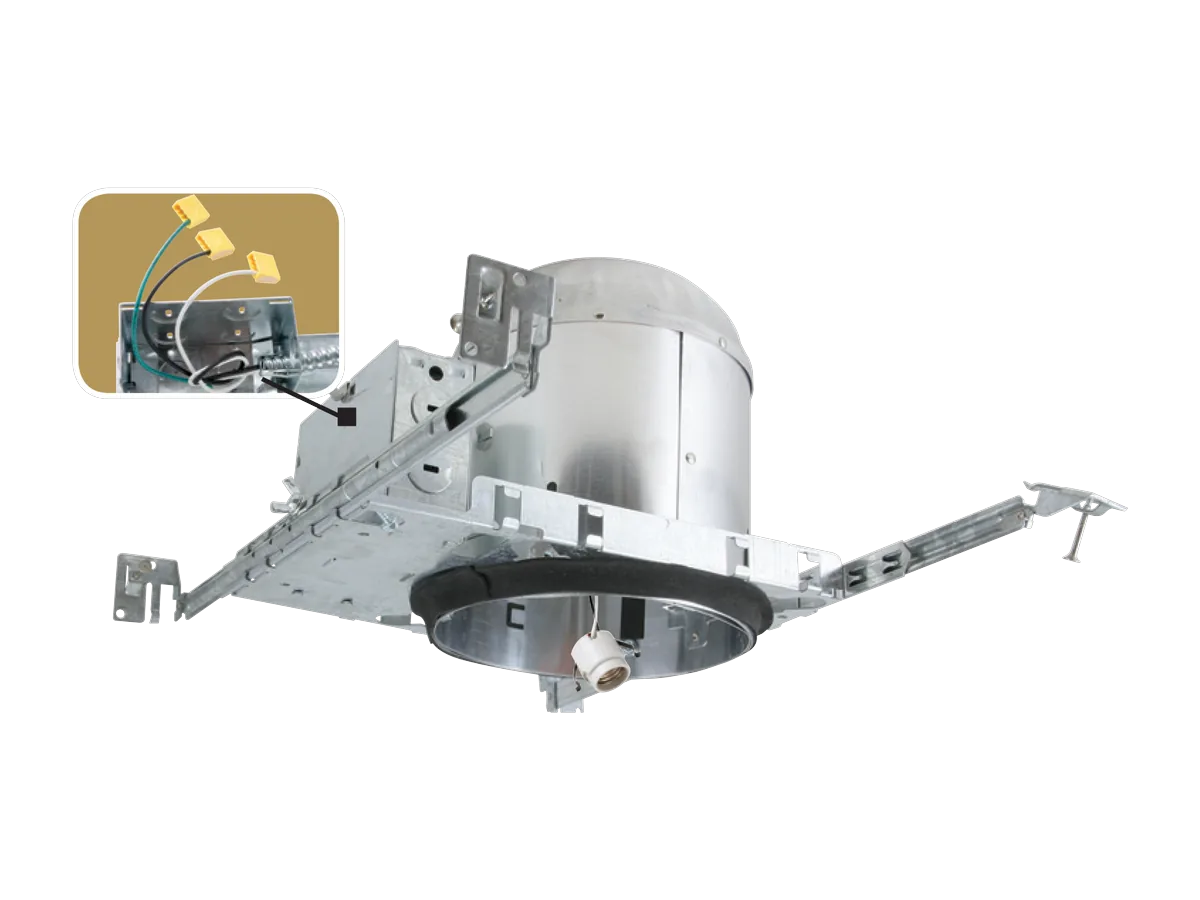

Universal Recessed Housing · T.24 Quick Connect Included
Two sizes · two install paths · T.24 Quick Connect included in the J-Box. /E26 takes PAR30/38, R30, A19, BR30/40 + LED retrofit modules. /T24 is JA8-2022-E LED-only for California. When the building converts to LED in year 5, the contractor unplugs the lamp socket and plugs in the module — no rewiring, no callback.
Model Specifications
Download Data Sheet| Lamp Type | Max Wattage | Base Path | Notes |
|---|
Dimensions
(For the selected size)Highlights & Features
Seven upgrades the legacy can category never shipped.
Two install paths · T.24 Quick Connect in the J-Box · AIR-TIGHT · IC Rated · Title 20/24-ready. One can, full upgrade path.
One Housing Family · Two Install Paths
Spec the can today. Light it however the energy code wants.

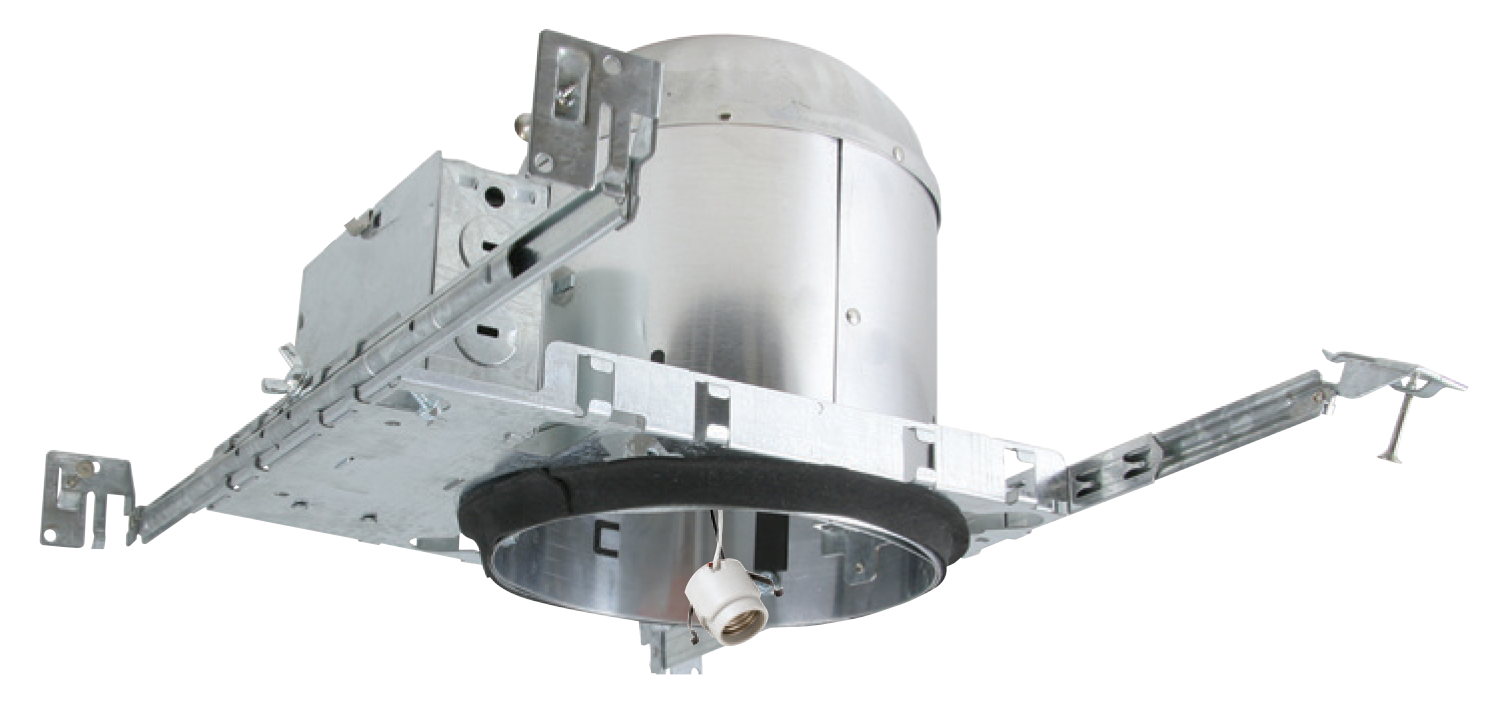

Two base-type variants on the same can: /E26 for legacy lamps + LED retrofit modules · /T24 for California Title 24 / JA8-2022-E LED-only. Same bracket, J-Box, T.24 coupler · the fork is at the socket.
/E26 medium-base socket — the universal path everywhere outside California. Takes PAR30/38, R30, BR30/40, A19 (up to 75W) plus the multi-fⒶMILY RL Series LED Retrofit Module. T.24 Quick Connect lets you swap lamp or module without wire-nuts. Click T24 / JA8 next for the CA-spec path.
Recommended LED Retrofit
Drop in the Nebula-II. Light the room.

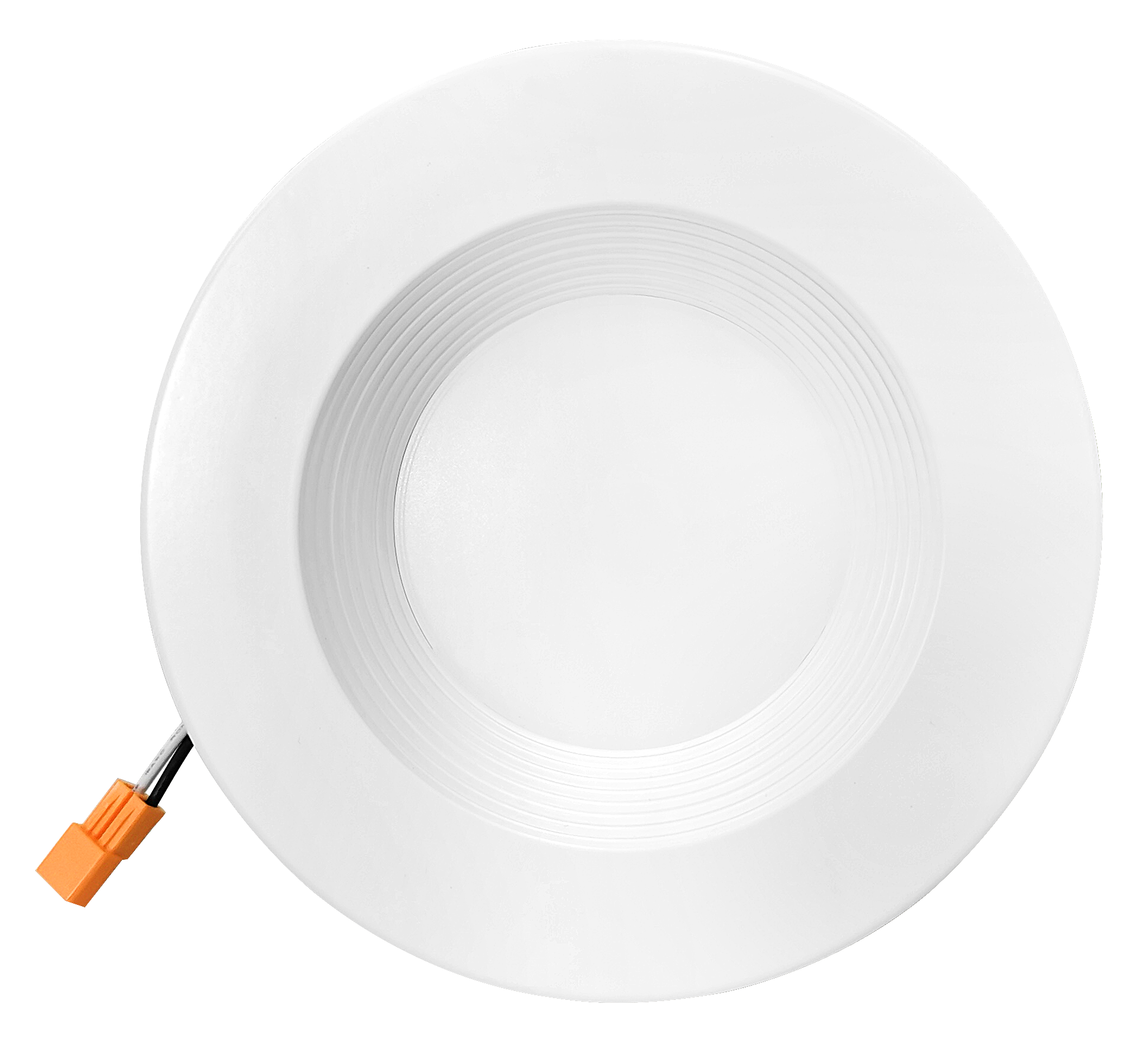

Two recommended retrofit modules drop into the Gehry E26 socket: Nebula-II (LDRR · 100° wide-flood · ★) and Orbit-I (LDGR · 60° gimbal). Both ship full LM-79 / LM-80 IES bundles on WorkDrive. 75W PAR30 incandescent kept as the legacy Datasheet reference.
LDRR615-N2-4000K.IES
multi-fⒶMILY LED retrofit ladder — alternate modules
Each ships its own LM-79 / LM-80 IES bundle. Drop into the T.24 J-Box for tool-free service swap.
| Module | Watt | Lumens @ 4000K | Beam | IES Bundle | Datasheet |
|---|---|---|---|---|---|
| Nebula-II (LDRR410 / LDRR615) ★ | 10W / 15W | 856 / 1,150 lm | 100° wide-flood | Live (10 IES) | ↓ Datasheet |

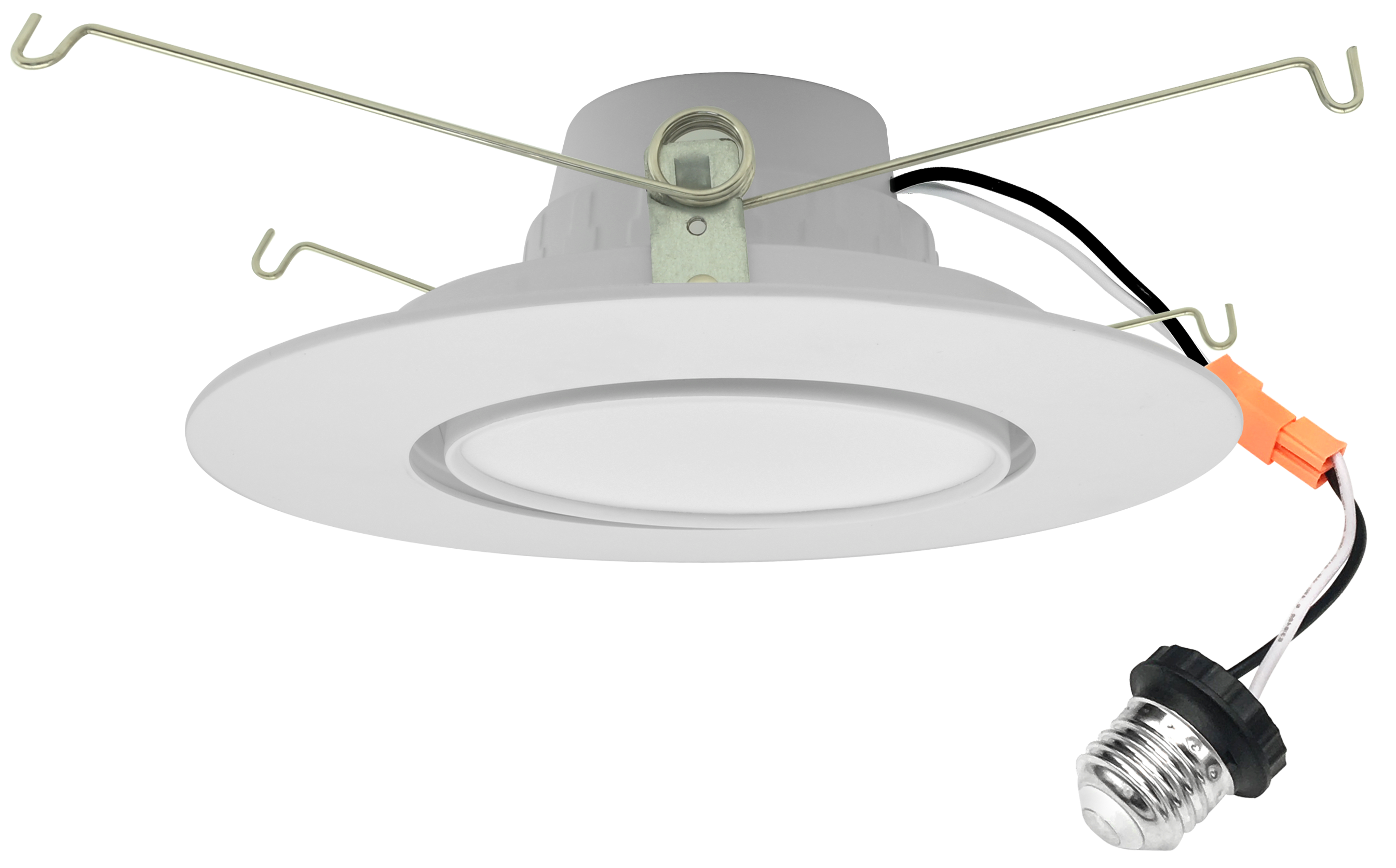

| Orbit-I (LDGR410 / LDGR615) | 10W / 15W | 720 / 1,193 lm | 60° gimbal · 60° tilt + 360° rot | URL pending | ↓ Datasheet |

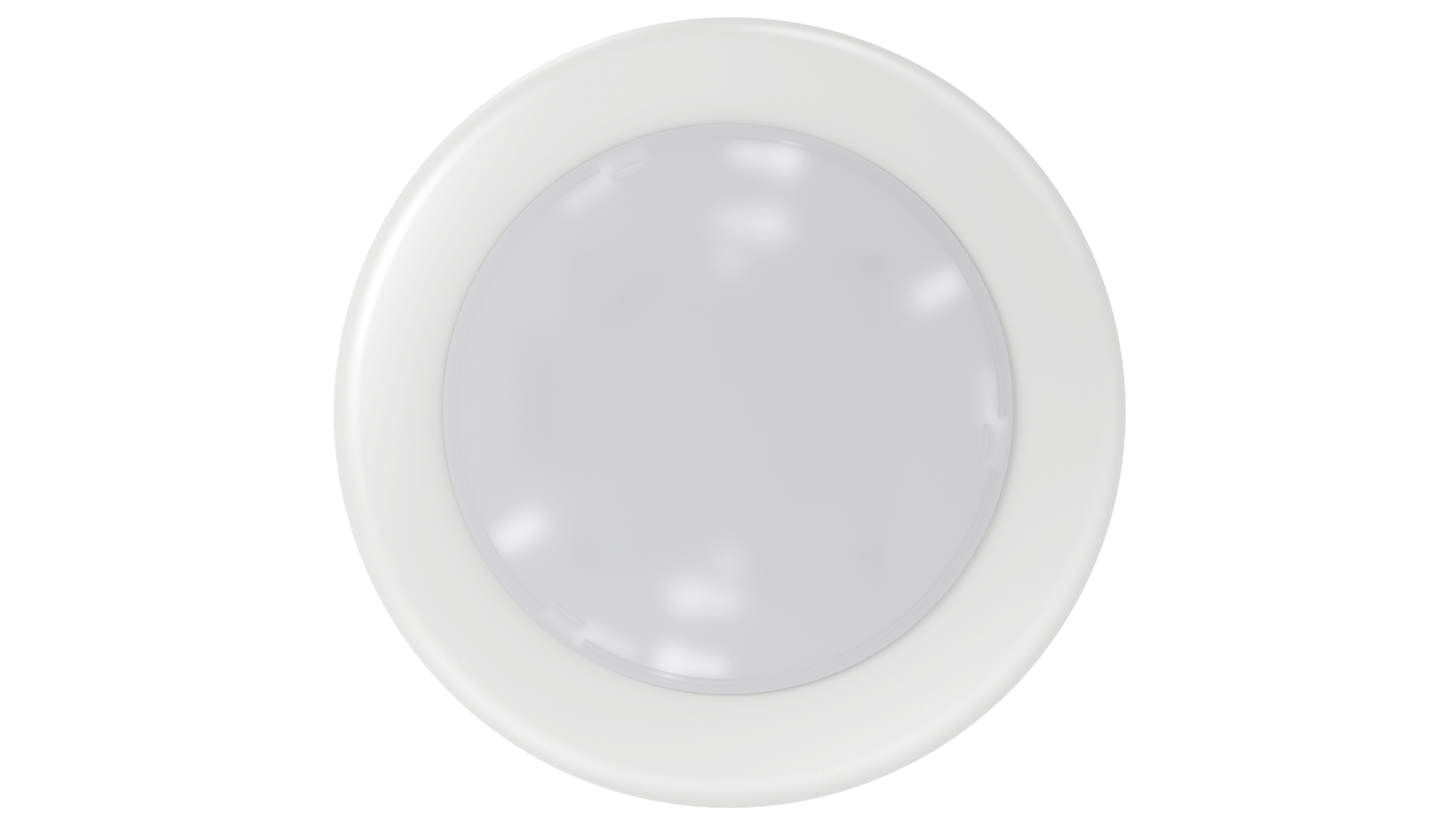

| eCrescent (LSMT410 / LSMT615) | 10W / 15W | 600 / 910 lm | 120° wide-flood (back-lit) | WorkDrive (10 IES) | ↓ Datasheet |

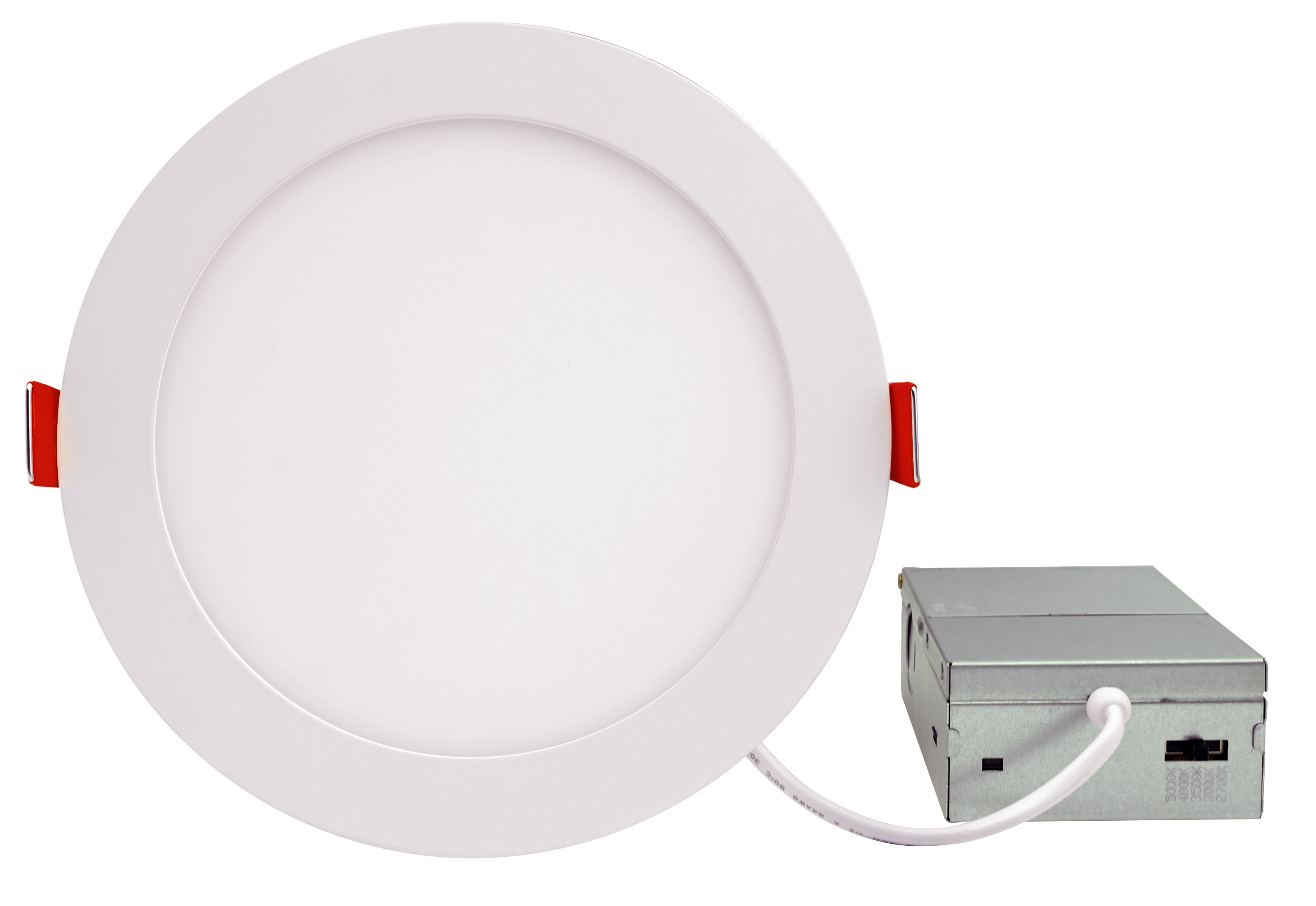

| Radius-II (LDRS409 / LDRS612 / LDRS818) | 9W / 12W / 18W | 644 / 1,041 / 1,474 lm | 115° edge-lit PMMA | WorkDrive (10 IES · 8″ pending) | ↓ Datasheet |

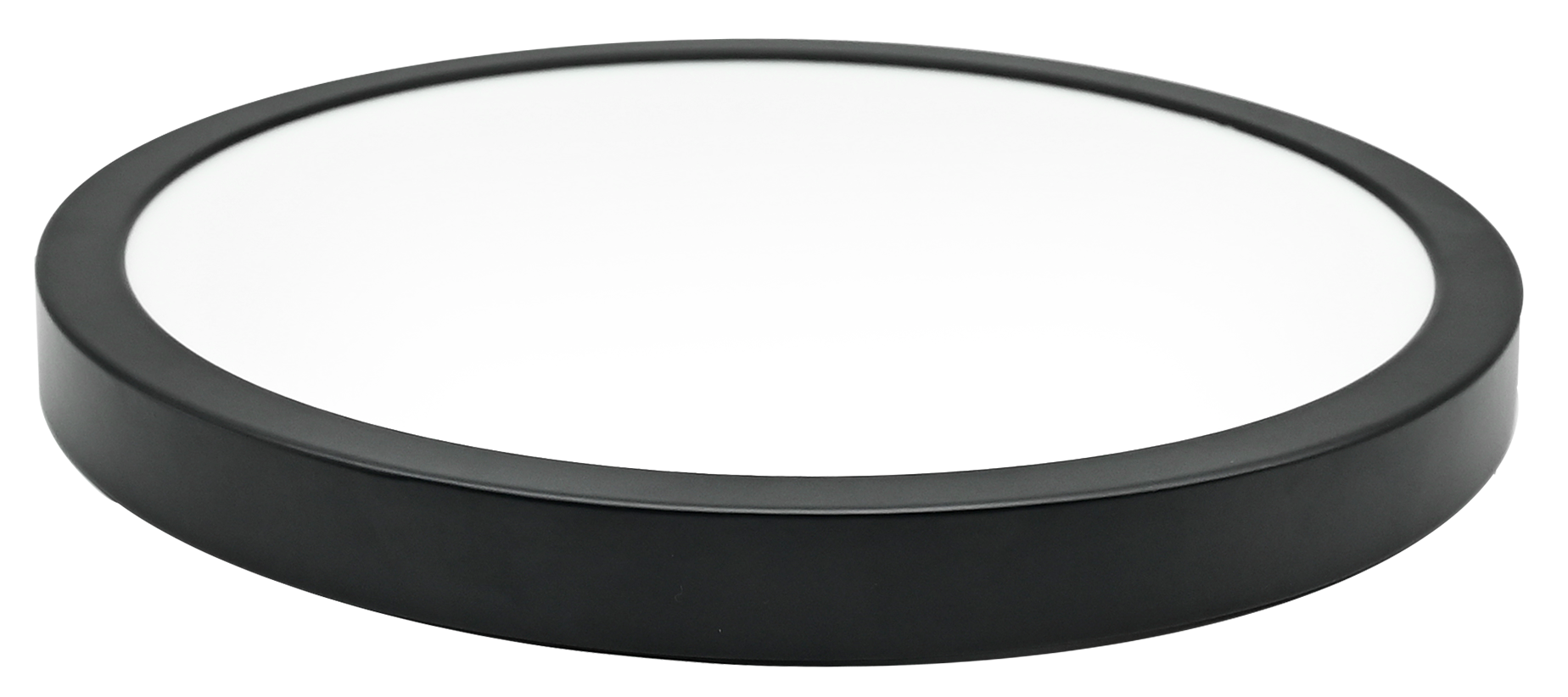

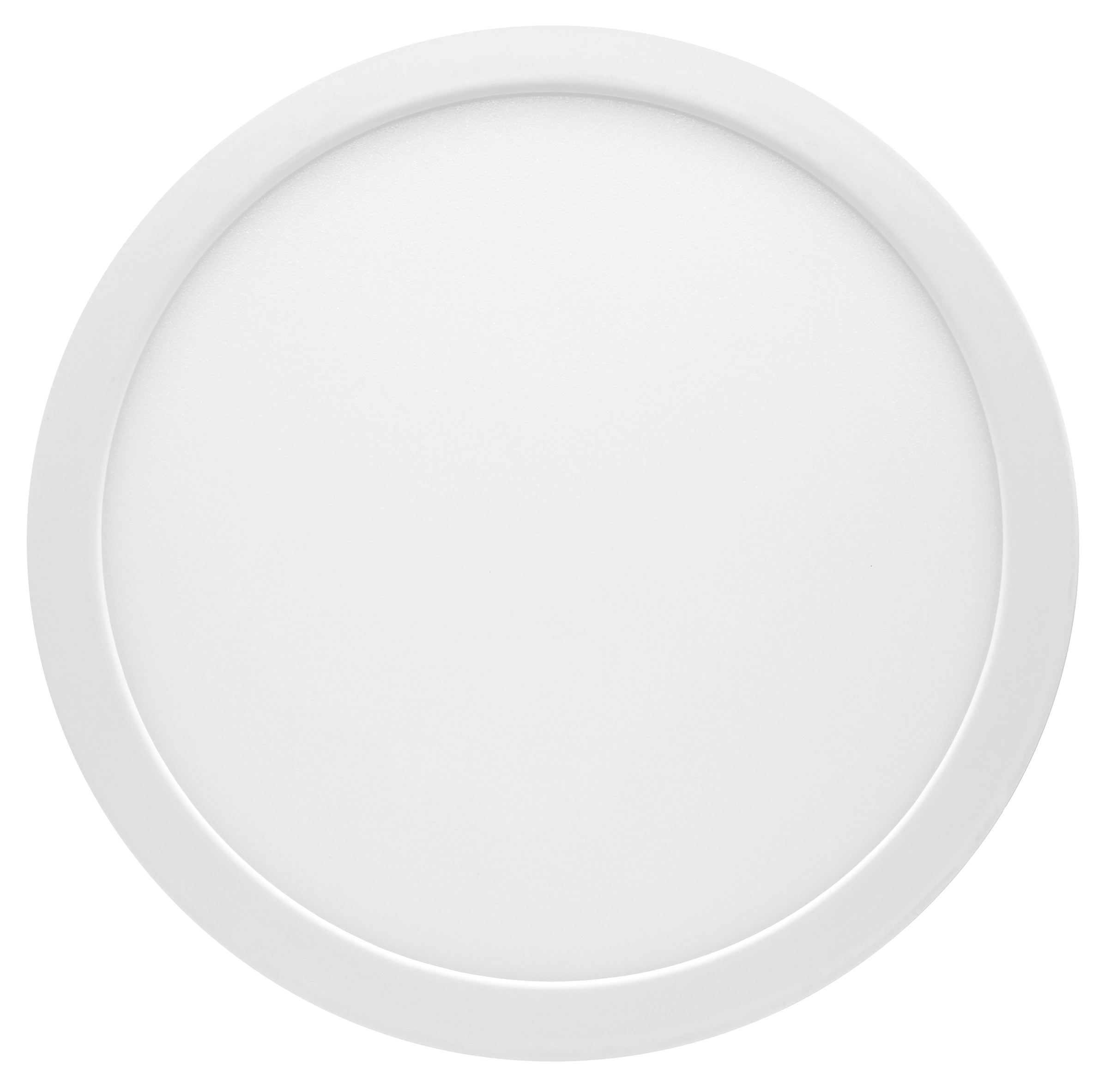

| Eclipse-II (LDLL0510 → LDLL1324) | 10W / 15W / 18W / 21W / 24W | 712 / 1,257 / 1,460 / 2,165 / 2,455 lm | 120° edge-lit puck (driverless · 0.79″) | WorkDrive (25 IES · 5×5) | ↓ Datasheet |

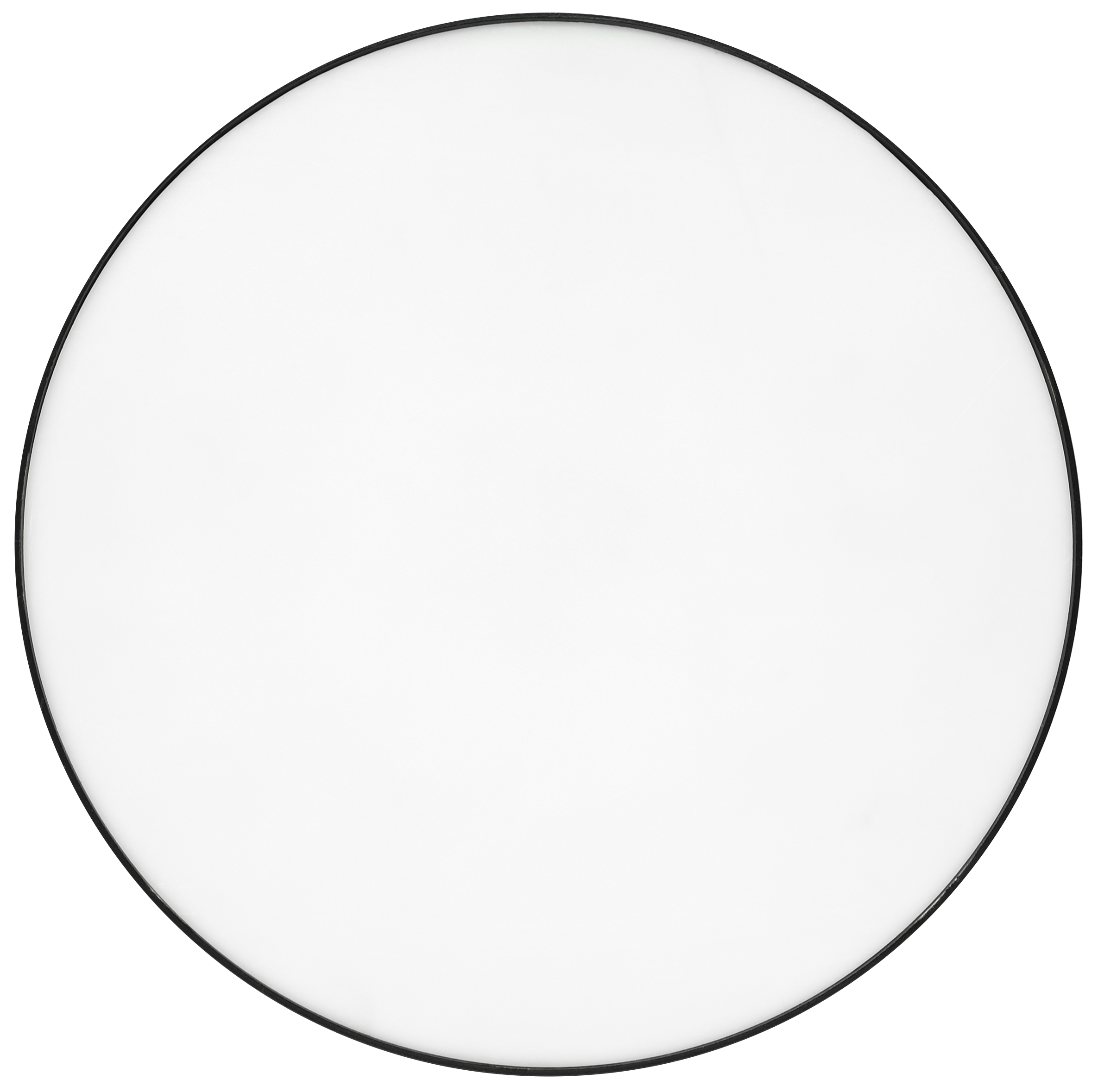

| Lunar Eclipse (LDLL0510 / LDLL0715 / LDLL0918) | 10W / 15W / 18W | 790 / 1,185 / 1,510 lm | 120° edge-lit puck (IP65 · black) | WorkDrive (15 IES) | ↓ Datasheet |
The housing is the chapter. The lightsources are the rest of the book.
7 lightsource SKUs · 6 multi-fMILY LED modules (Nebula-II ★ / eCrescent / Radius-II / Eclipse-II / Lunar Eclipse / Orbit-I) · 1 compatible lamp (LTA19F800xxMB · 5-CCT). The whole module ladder ships from the same catalog as the housing.

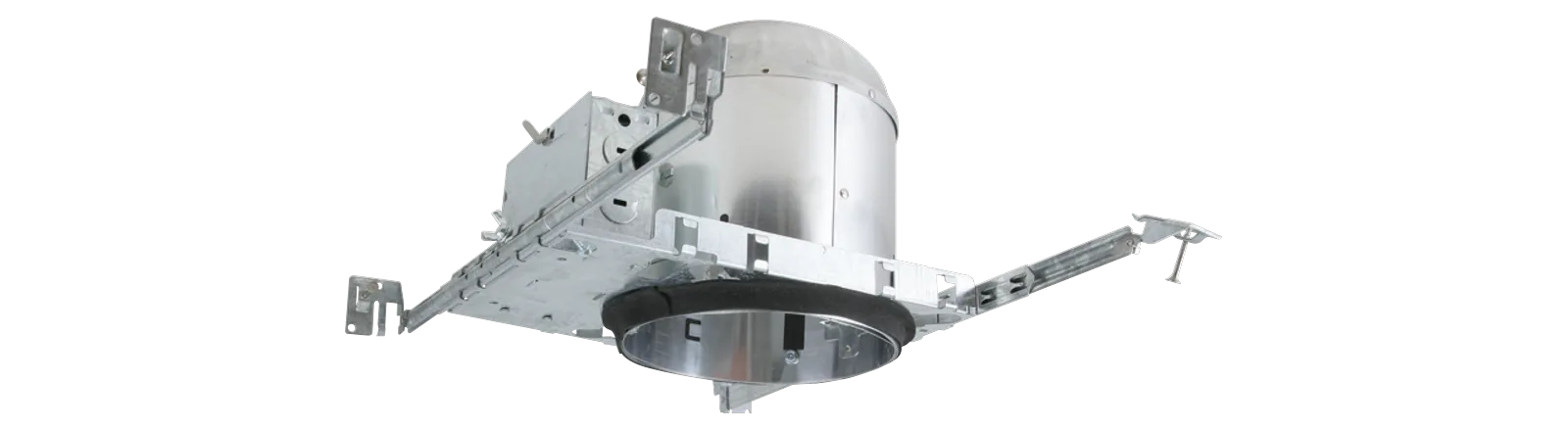

Configure Your CRC Gehry
Size + Base Type → one of 4 SKUs. Companions: LED Module · A19 Lamp. ★ default · QS QuickShip · + companion (separate line item)
Documentation & Resources
Everything specifiers, contractors, and property managers need to spec, install, and certify the CRC Gehry housing — data sheet, E26 and T24 install topology guides, and the live submittal generator. WorkDrive URLs for the install guides and QuickSheet are pending engineering registration.
The housing today. The modules that drop in for the next 30 years.
Each multi-fMILY LED retrofit module drops into the T.24 J-Box for tool-free service swaps. Same factory · same warranty pedigree · same commercial-tier engineering.
For the whole property.

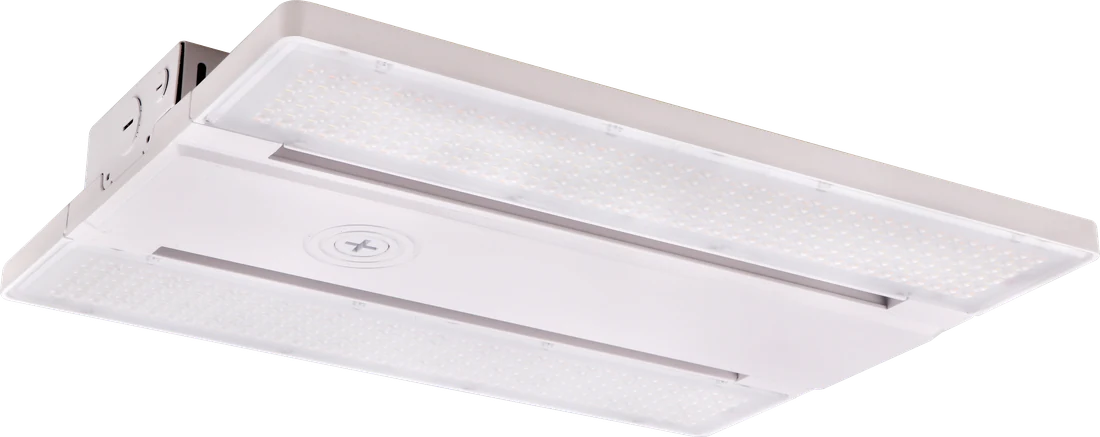

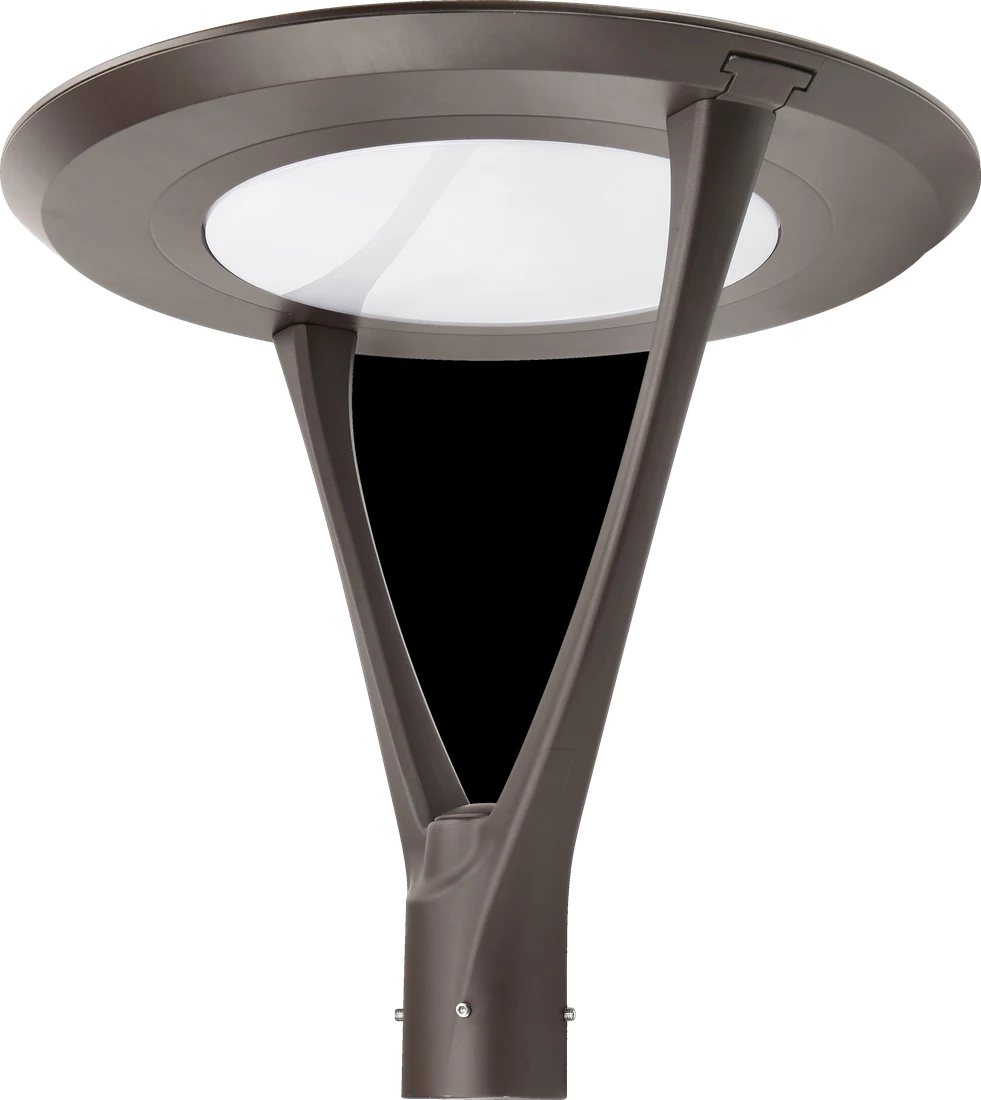

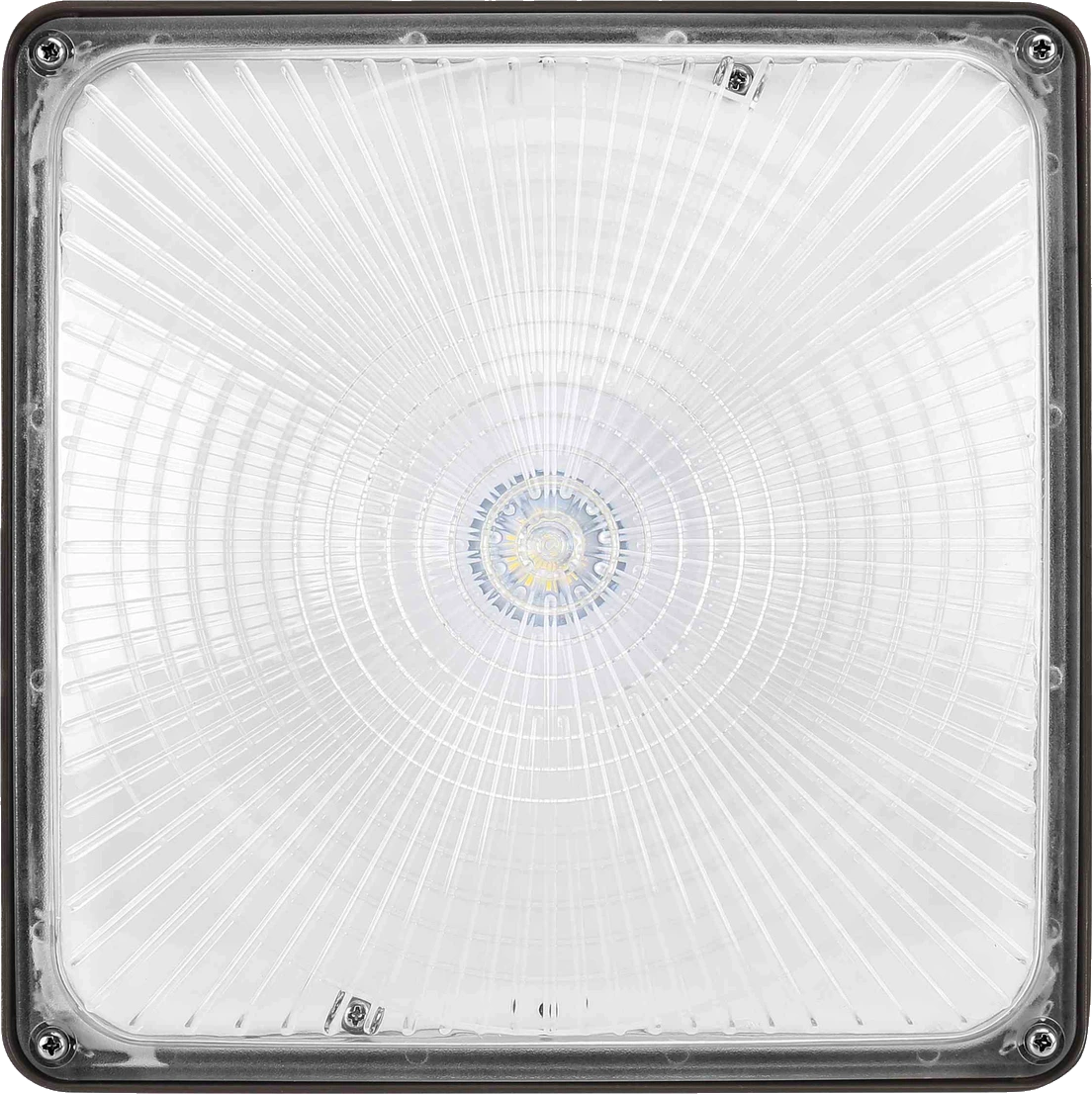

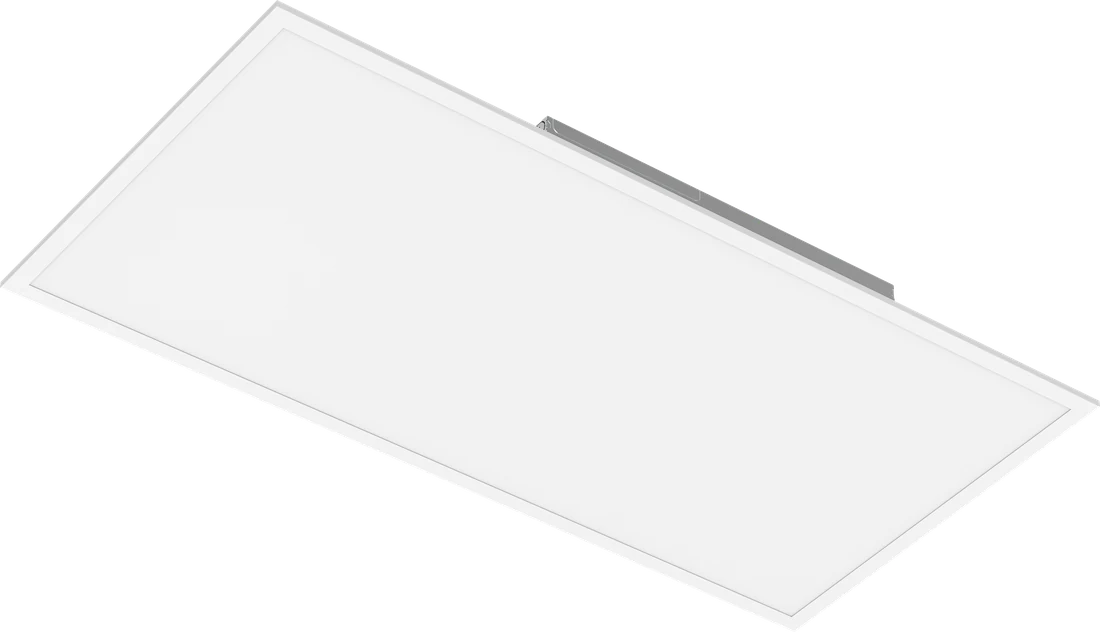

Gehry handles the recessed-can install infrastructure inside the dwelling unit — bedrooms, kitchens, living rooms, hallways, and any in-unit zone where the spec calls for a recessed lamp socket or LED retrofit module pairing. These cross-line fixtures handle everything else on the property — parking lot, walkways, parking garage, leasing office — same CS controls platform where applicable, same factory, same warranty pedigree. Specify them together for a single-source multi-family lighting package.
Built for turn-over speed.
Hundreds of thousands ship from five US warehouses — 2-3 day QS lead means a unit refurb between tenants doesn't wait on lighting. Layouts back in 48 hours, quotes and rebate matches reply same business day. 24-pack contractor cartons standard.
Stack the California rebates — through the LED module.
Honesty marker: housings don’t qualify for IOU lighting rebates directly — rebates flow through the LED module dropped into the T.24 J-Box. Spec /T24 + a JA8 module (eCrescent · Radius-II · Eclipse-II · Lunar Eclipse) and unlock CalEnergyWise, PG&E / SCE / SDG&E, HUD multi-family · DLC-listed pairings (Eclipse-II / Lunar Eclipse) add commercial rebate ladders. We match the APN and pull the paperwork.
