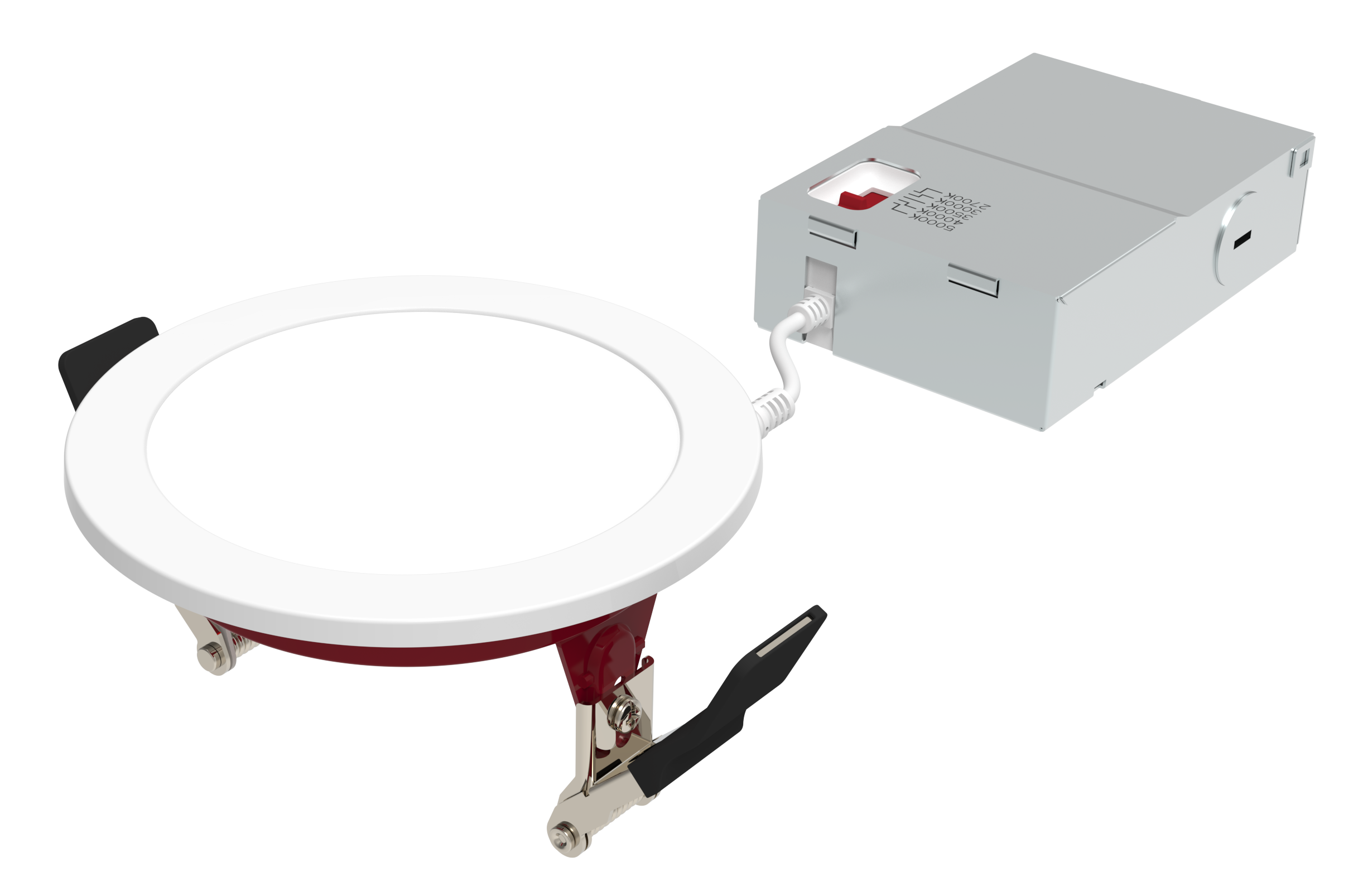

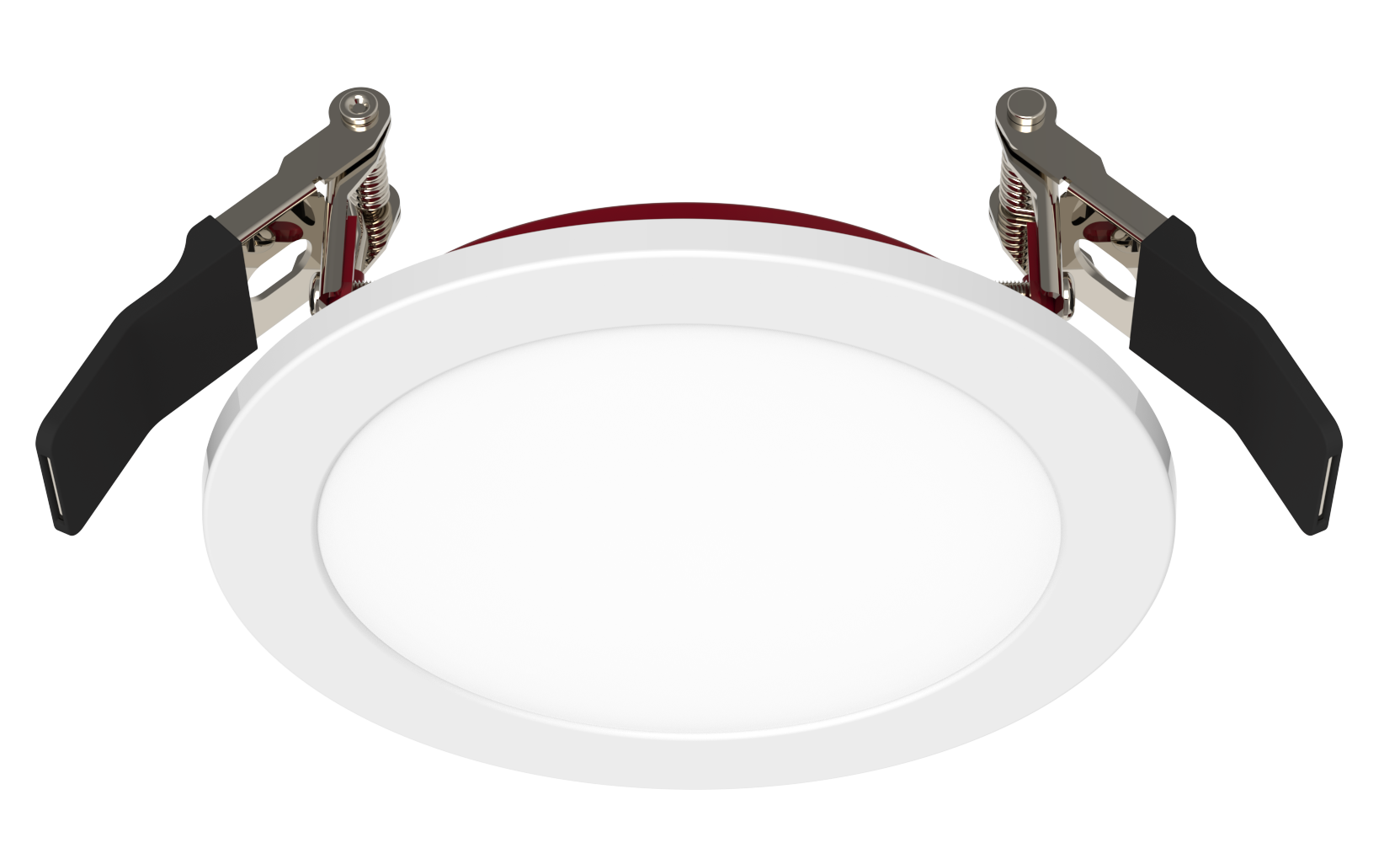

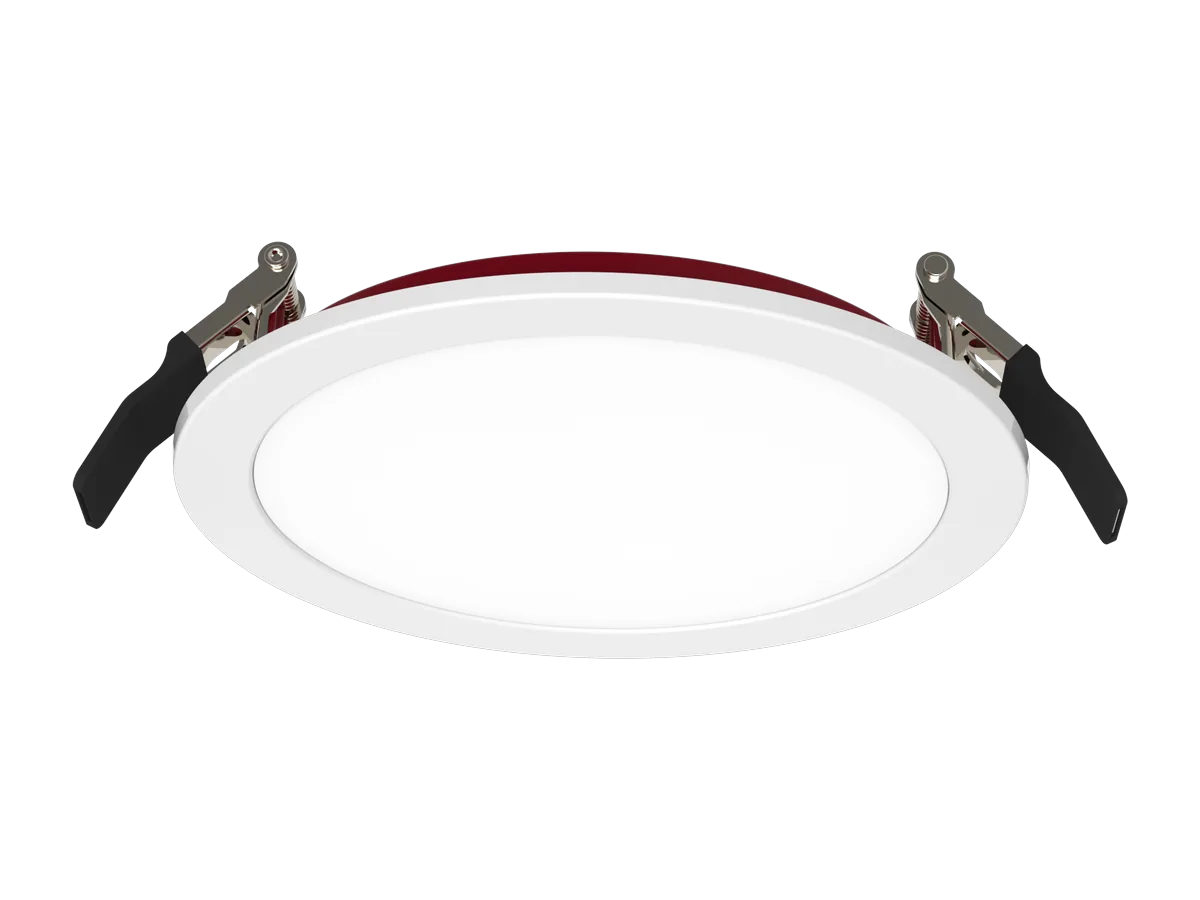

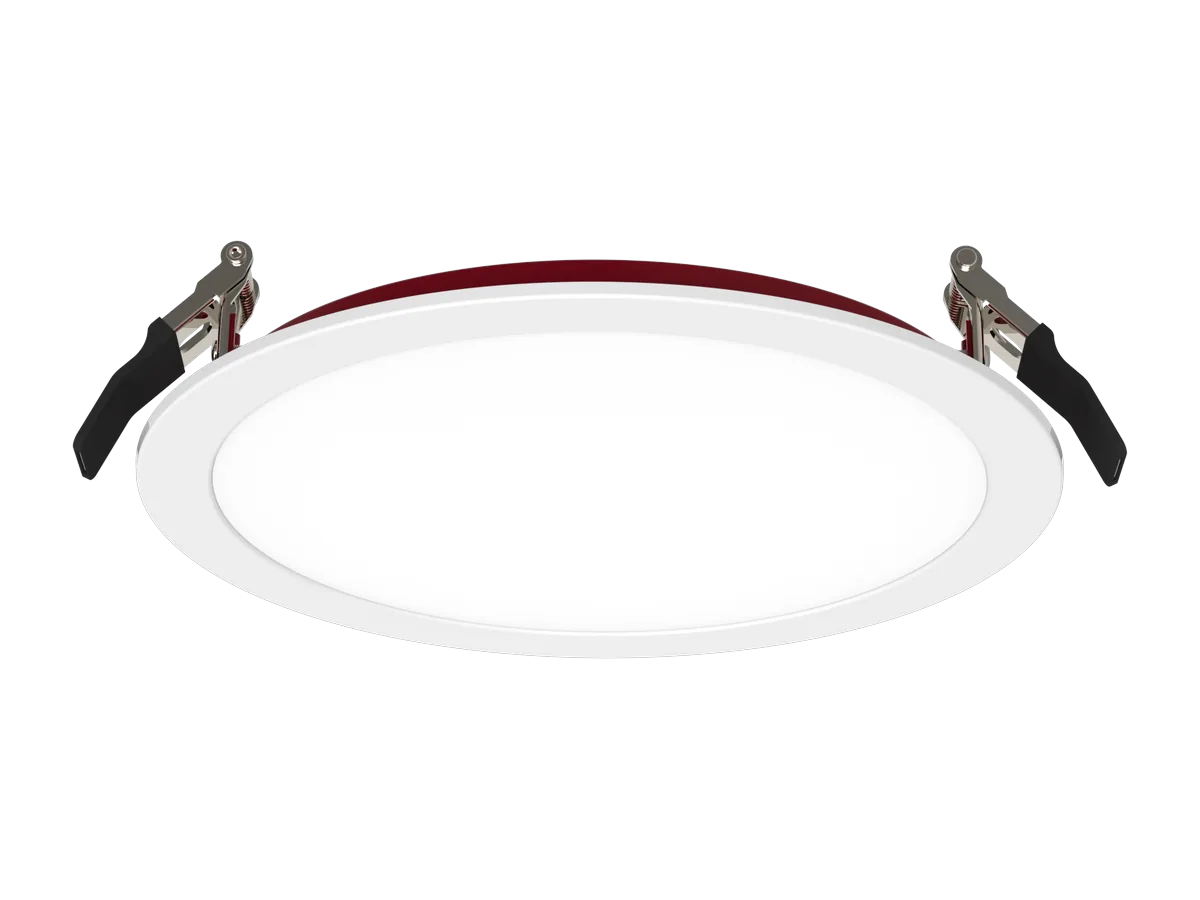

Radius SafeZone Series
LDRS-SZ · 8 ACTIVE SKUs · UP TO 15W
UL 924 emergency-rated downlights for egress paths and life-safety zones in multi-family corridors. Integrated battery backup, 90-minute emergency runtime, and standard-trim aesthetics — so the fixture looks the same whether it's in normal or emergency mode.
Full product detail page coming soon.
The Radius SafeZone full PDP — including photometrics, configurator, submittal generator, and downloadable IES files — is being prepared and will be published in the next release cycle. In the meantime, contact your ALG rep or distributor for spec sheets and project pricing.
Known specification data is shown below. All values are preliminary and subject to final engineering sign-off.
| Parameter | Value |
|---|---|
| Series | Radius SafeZone (LDRS-SZ) |
| Tier | PRO+ |
| Application | SafeZone / Egress · Hallway / Common Area · Code & Inspection |
| Active SKUs | 8 |
| Max Wattage | 15W |

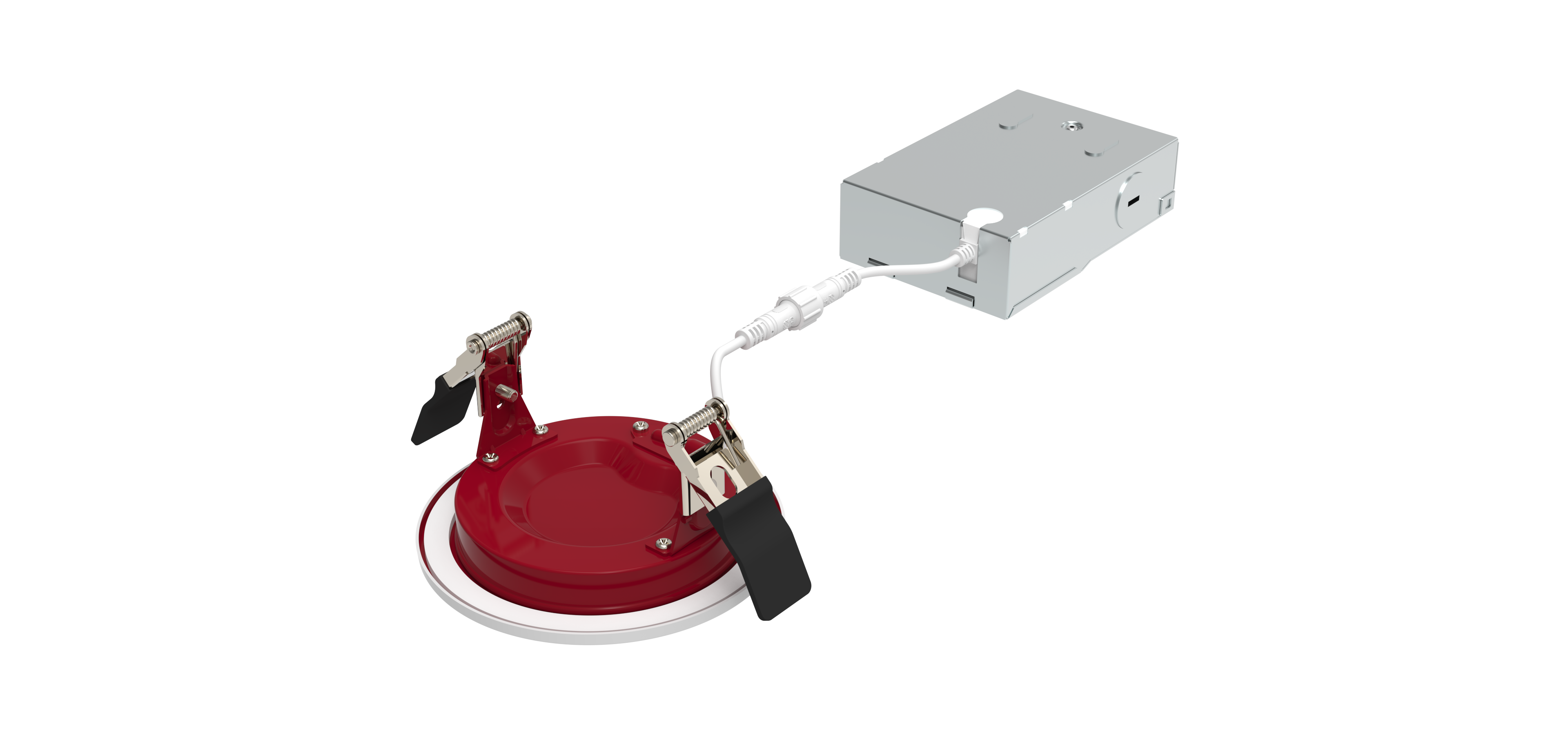

| Apertures | 4″, 6″ |
| CCT Options | 2700K, 3000K, 3500K, 4000K |
| CRI | ≥90 |
| Emergency Rating | UL 924 · 90-minute runtime |
| Location Rating | Damp |
| Warranty | 7 years (PRO+) |
| Compliance | JA8 · Title 24 · ENERGY STAR (TBC) |
Engineering In Motion
See the Radius SafeZone in action.

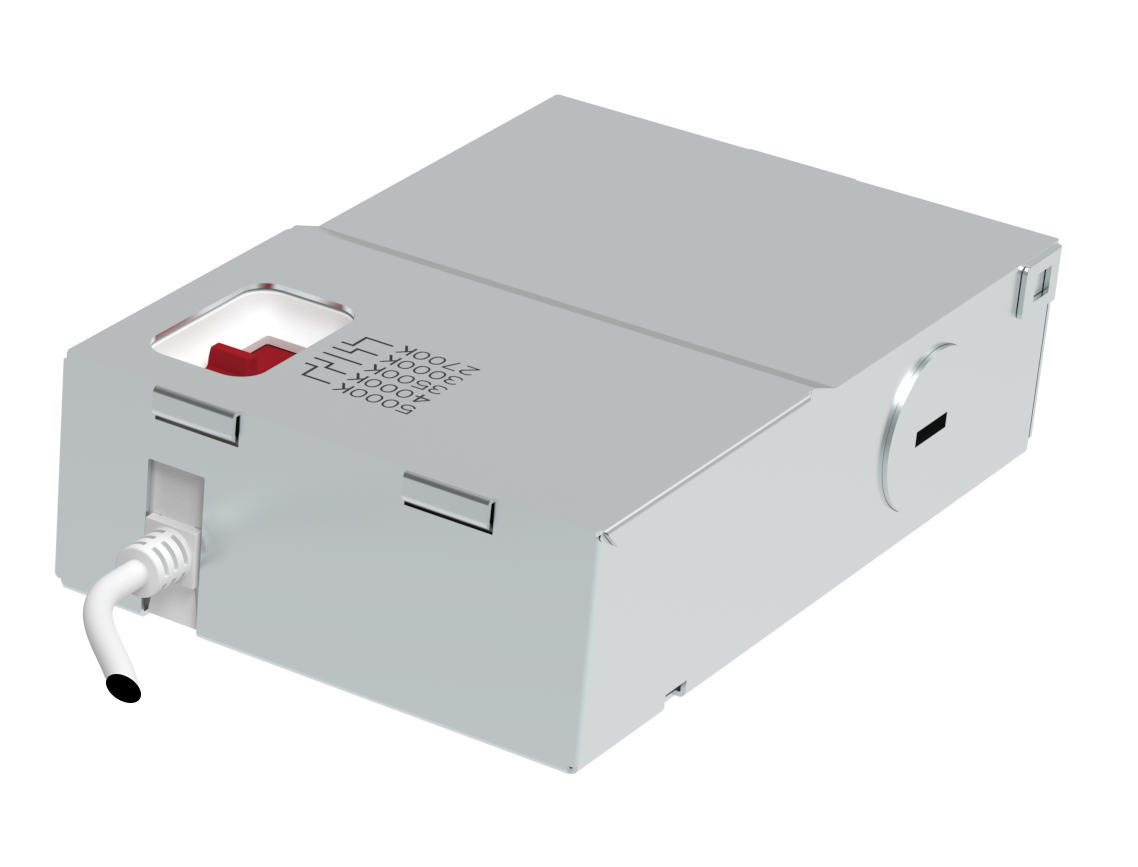

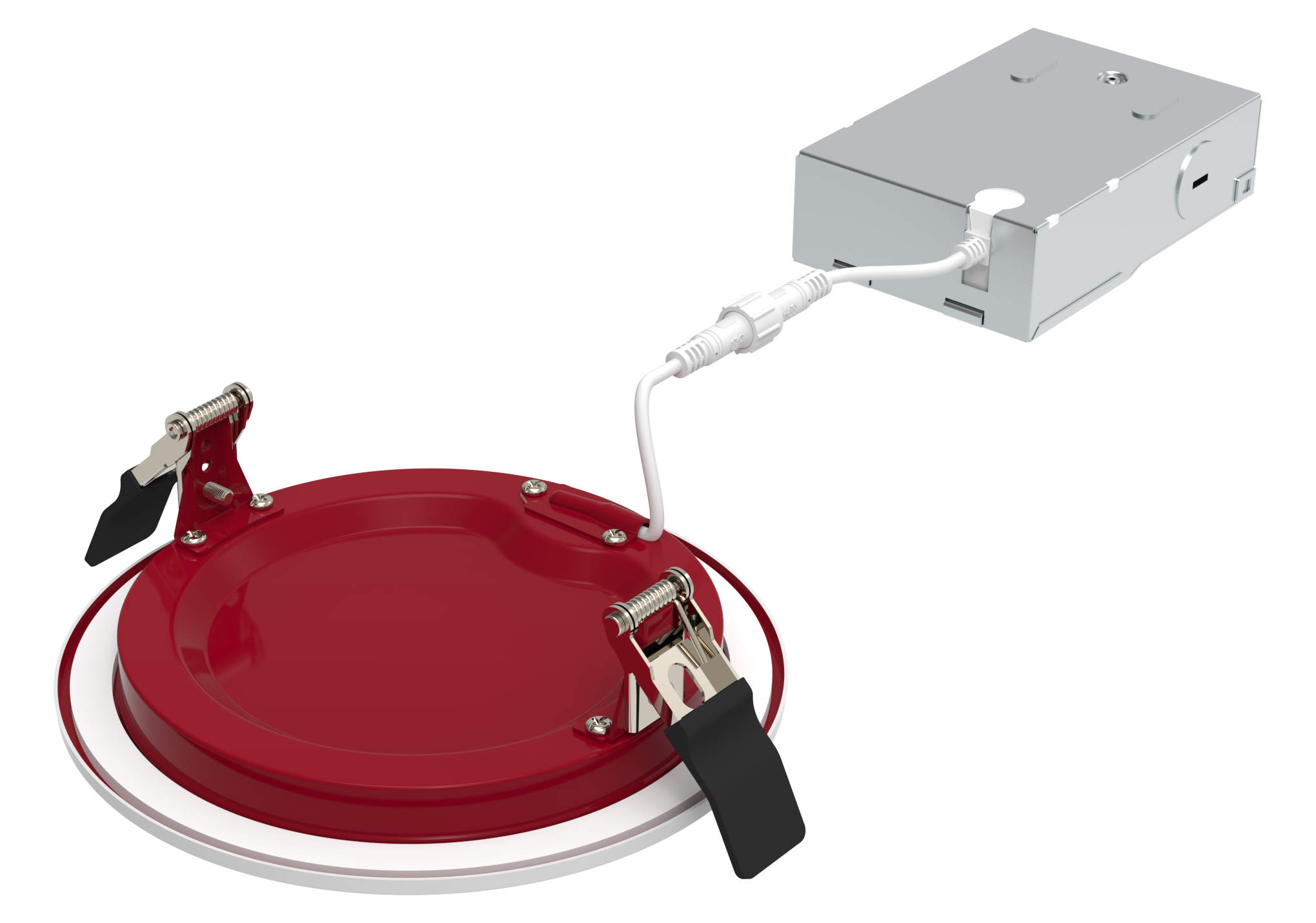

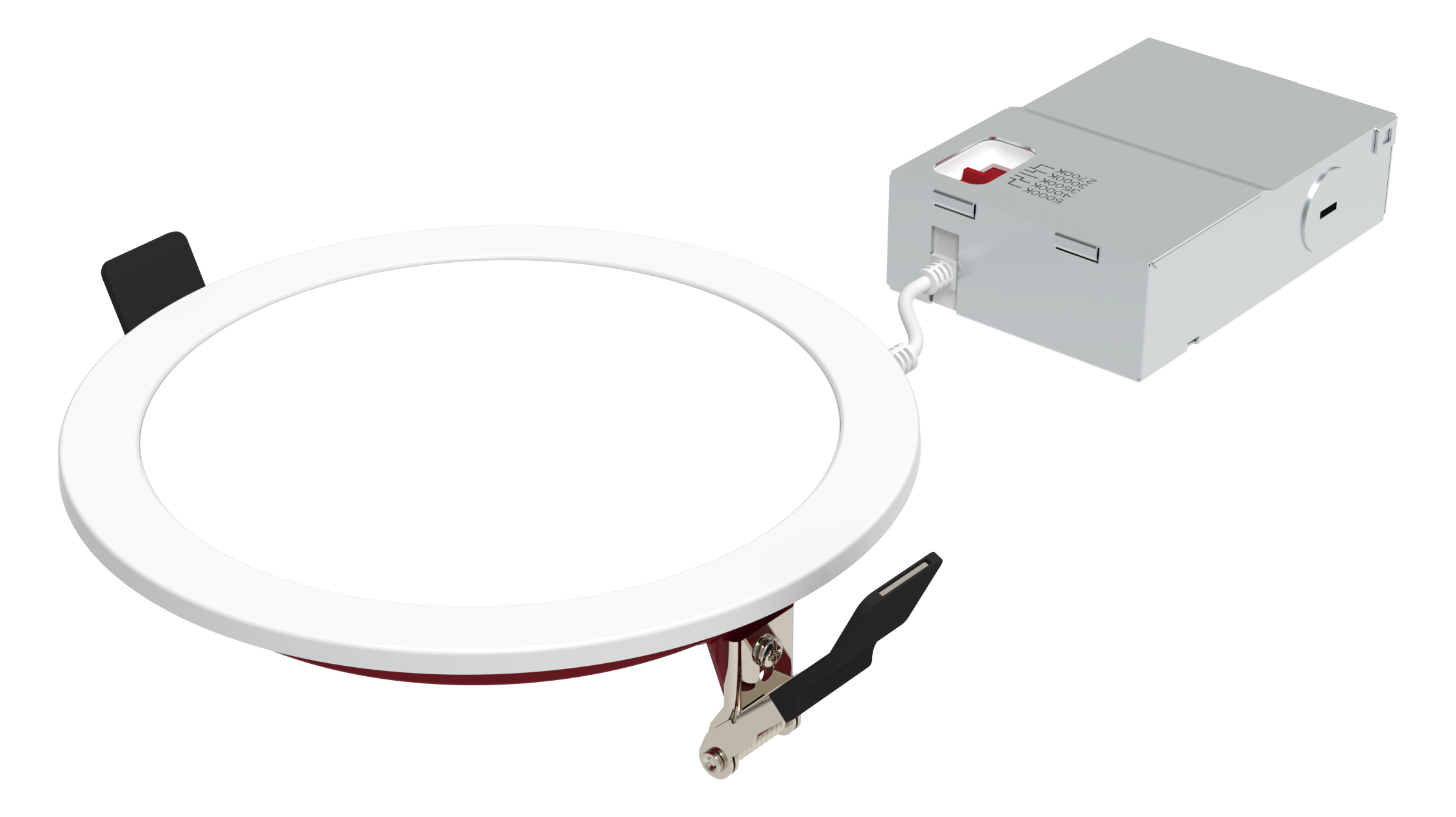

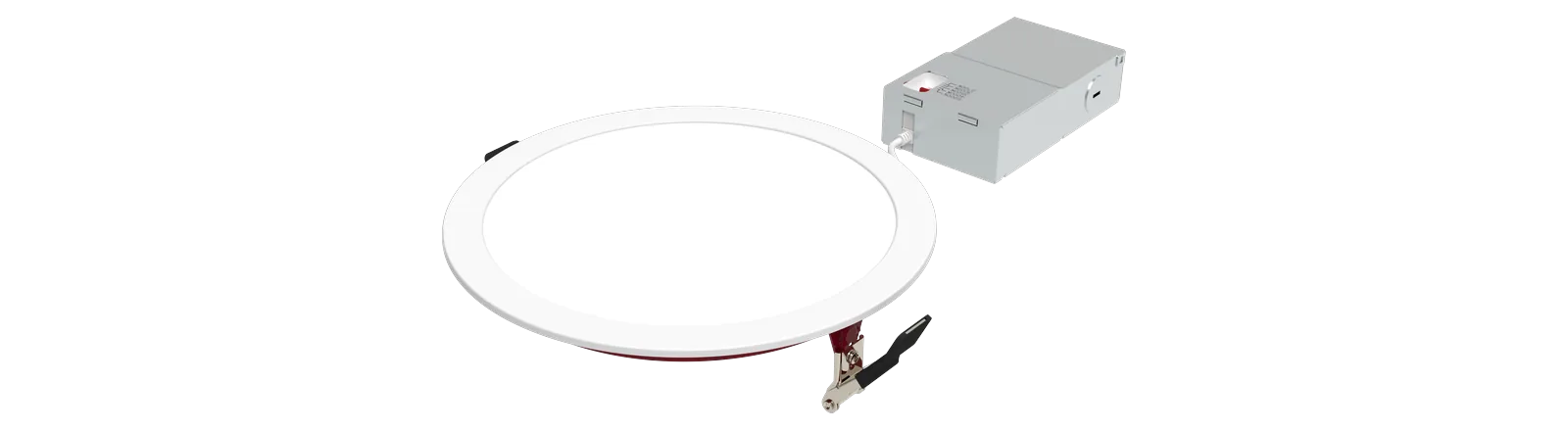

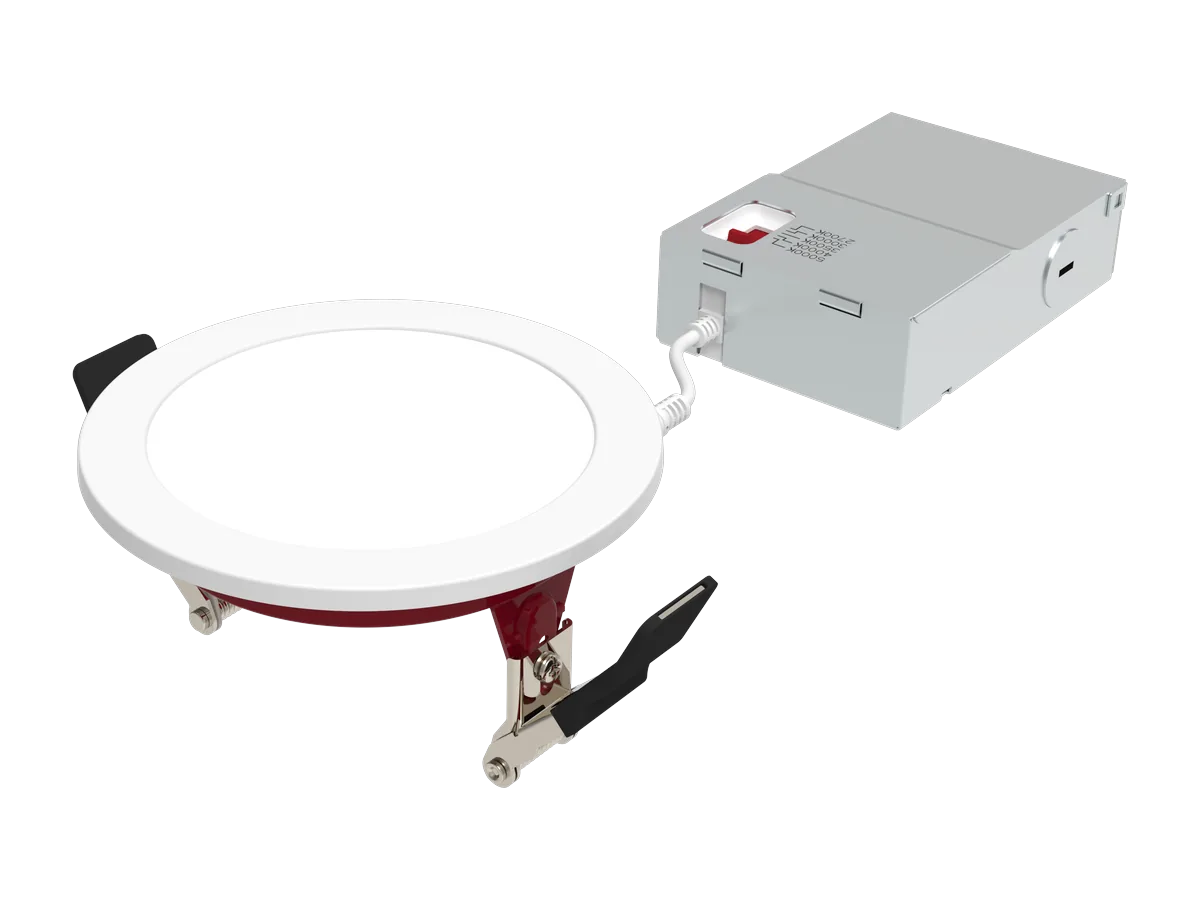

Two short clips covering the SafeZone story — the two-hour fire-rated assembly that holds the ceiling’s UL 263 rating, and the plug-and-play J-Box install that keeps the slim-wafer 5-minute spec on the project.
