LPTP · Unity ECO

Foldable post-top. Built to win the budget bid.

Unity-I delivers Dark-Sky-aligned 360° illumination for pathways, plazas, parking aisles, and pedestrian walkways. A frosted diffuser, dual 3-WATTSELECT × 3-CCTSELECT switching, and a foldable cantilever-arch cut shipping cost without compromising on-site adjustability — Type-V uplight-zero light at 115 lumens per watt across every wattage step.

Input Watts: 35–150W (dual 3-step) Lumens: 4,005–17,250 lm Efficacy: 115 lm/W constant

Ideal Applications

Pathway

Plaza

Park

3-WATTSELECT

3-CCTSELECT

FOLDABLE DESIGN

SURGEⒶRMOR

DARK SKY

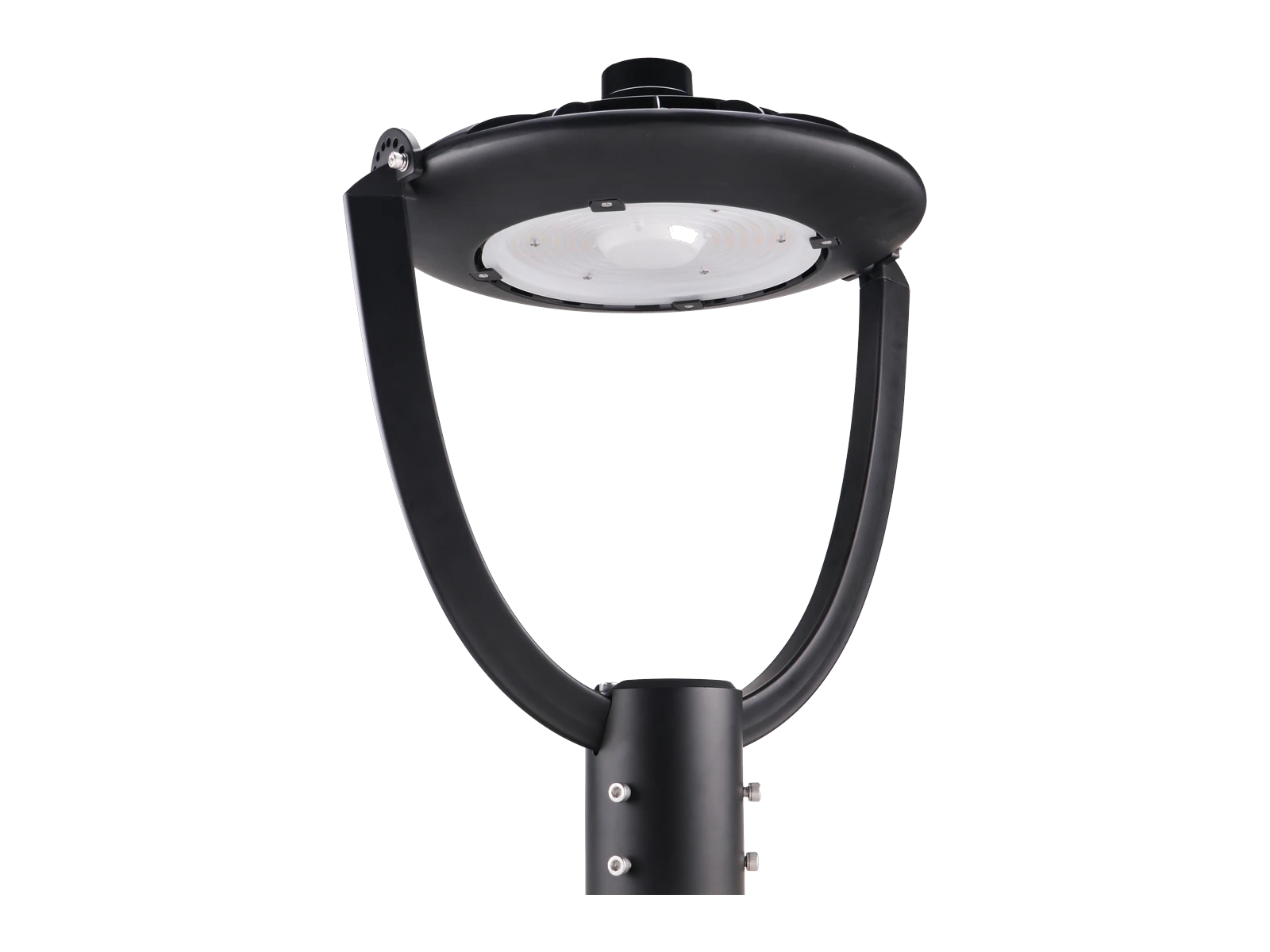

Unity-I 150W black housing — 3/4 hero angle showing curved cantilever arch and frosted glass diffuser

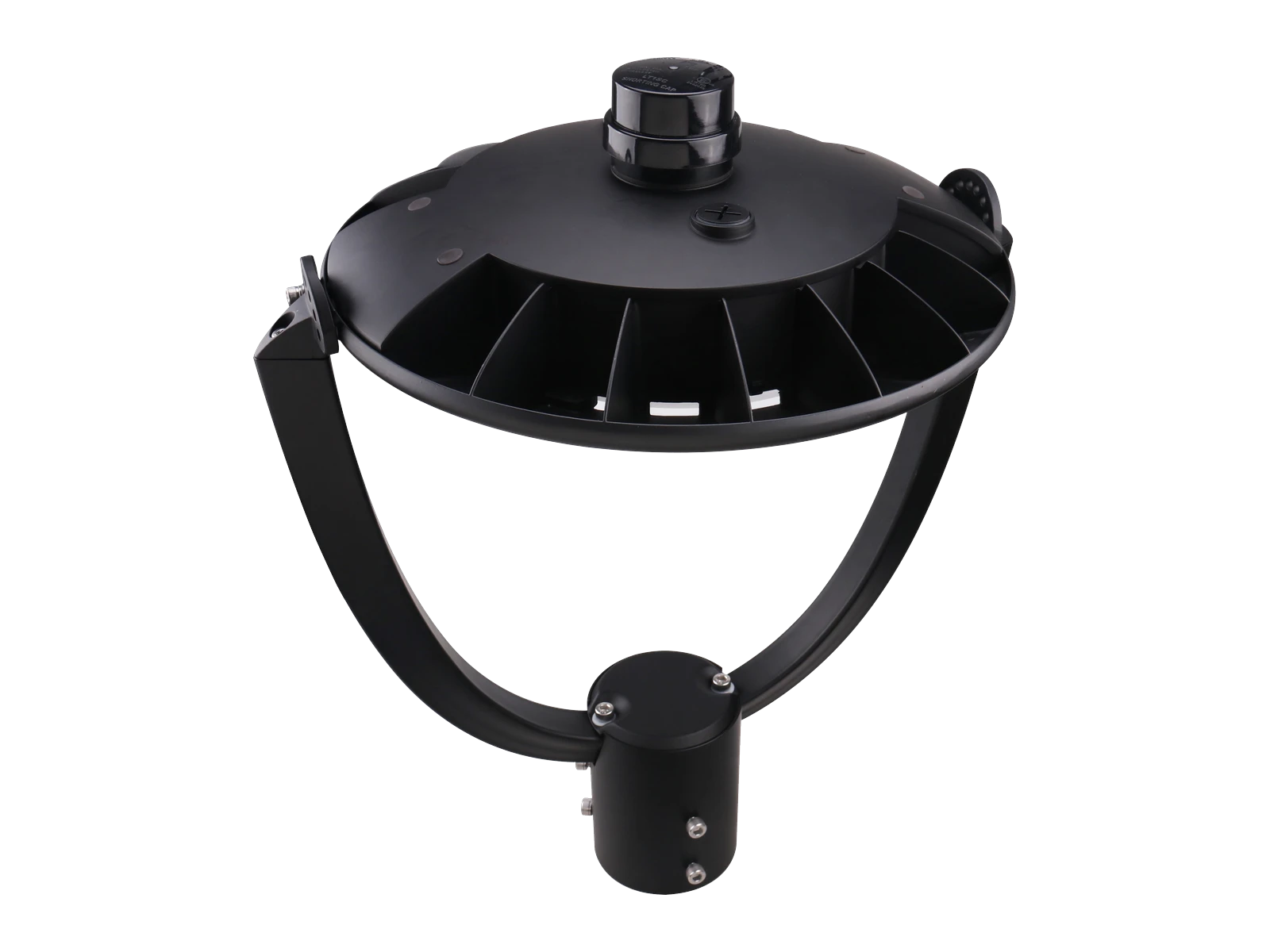

Unity-I — top-down view of frosted diffuser and Type-V 360° omni-directional optical aperture

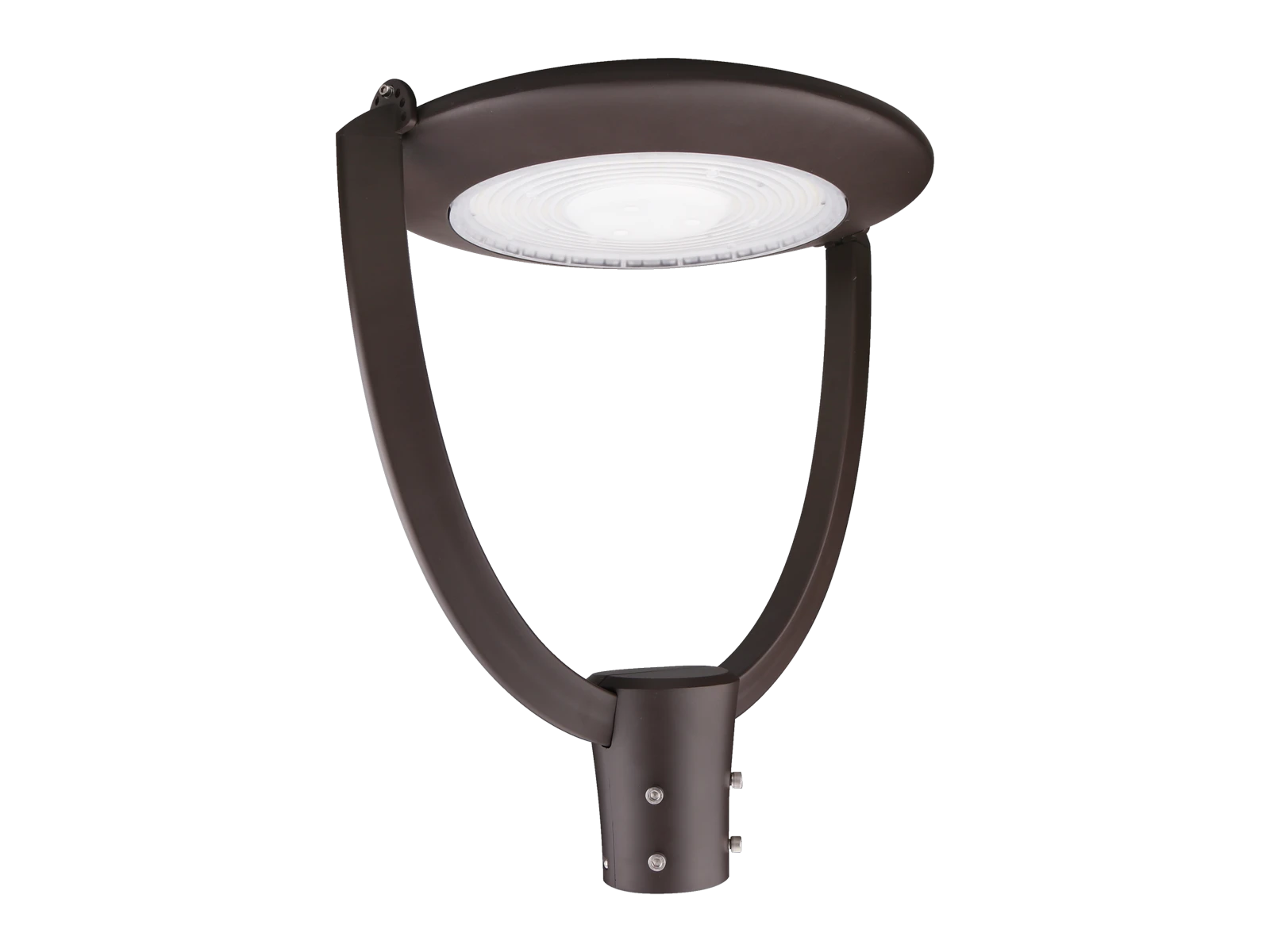

Unity-I 75W class — alternate die-cast aluminum housing detail with sealed thermal-conductive body

Slide 05 / 05

[ AI-generated · awaiting asset ]

Pedestrian pathway at dusk · 3-4 Unity post-tops on row · Type-V circular pools on walkway

DLC Listed

UL Listed

RoHS

FCC

Wet Location

Highlights & Features

Unity-I: foldable freight, fixed efficacy, frictionless install.

Seven highlights that drop install cost without dropping light quality — foldable cantilever ships flat, dual 3-step dip-switches turn one SKU into nine settings, Type-V optic puts every lumen down.

Two Unity-I post-tops side-by-side — left in shipping fold (cantilever collapsed flat at 120°), right deployed upright on a pole — illustrating the foldable freight-saving geometry

— Hero Highlight

Foldable Cantilever Design.

The lamp head folds flat against the pole connector for shipping — a 120° viewing angle that cuts pallet volume by roughly half. Easier to handle on the dock, easier to hoist on-site, and a freight line item small enough that the rep can fold it into the bid.

Macro of the Unity dip-switch panel — two 3-position switches labeled WATT and CCT, gloved hand setting both with a thumb-flick

Field-Adjustable

3-WATTselect × 3-CCTselect.

One SKU, nine in-the-box settings. Set wattage (35/50/75 or 100/125/150) and color temperature (3000K/4000K/5000K) with two dip-switches in under 30 seconds. 115 lm/W platform efficacy holds across every step — no efficacy penalty for trimming output.

Top-down rendering of three Unity post-tops on a pathway — concentric circular pools of light extending evenly in all directions, with zero light spilling upward into a starry sky above

Optics

Type V · 360° · Zero Uplight.

Omni-directional pedestrian-scale distribution puts uniform illuminance in a full circle around the pole. The Dark-Sky-aligned cap blocks every lumen of uplight — preserves the night sky, keeps you compliant in IDA-protected zones and most modern lighting ordinances.

Macro shot of water beading on the die-cast aluminum housing of a Unity-I luminaire in the rain — IP65 wet-location seal visible at the cap-housing joint

Durability

wetⒶGUARD Sealed Housing.

Thermally conductive die-cast aluminum, fully sealed for IP65 wet-location service. Operating range -4°F to 122°F. 3G vibration rating. Dual-mode 6kV surge protection on both L/N-PE and L-N circuits comes standard — 10kV / 20kV available where the spec sheet asks for it.

Side-by-side render of a Unity-I and a Symmetry-I post-top sharing the same single-can pole adapter — cross-product mount infrastructure callout

Mounting

Symmetry-I Single-Can Mount.

Unity-I uses the same Symmetry-I single-can pole adapter as its PRO+ sibling — fits 2-3/8" or 3" round pole tops. One mount, two product tiers. Drops your inventory complexity if you spec mixed-tier projects, and gives you a clean upgrade path from ECO to PRO+ without changing the pole hardware.

Close-up of the Unity-I frosted glass cap from below — soft, even glow across the entire diffuser surface, no visible LED hotspots, no glare to a pedestrian standing under it

Glare Control

Frosted Glass Diffuser.

The frosted glass cap diffuses the LED array into a soft, even disc — eliminates pixelated source spots and the glare that comes with a clear lens. Comfortable for pedestrians looking up, comfortable for security cameras pointing through it, comfortable in residential-adjacent installs.

Optional twist-lock photocell installed in the dome receptacle on top of a Unity-I — gloved hand twisting it home in a single motion

Energy Optional

Twist-Lock Photocell-Ready.

Standard ANSI twist-lock receptacle in the cap accepts any 3-pin or 7-pin photocell — order with the `/PS` suffix to ship factory-installed, or leave it open and add the LSBX-L1/PCS family on-site. Dusk-to-dawn operation with no controls platform required.

Photometric Distribution

Beam shape, generated from the IES file.

Real luminous distribution at the selected model and optic. Each curve is rendered directly from the certified IES test report — peak candela, beam profile, and total lumen output update with the selection below.

Wattage Class

Distribution

Peak Candela

8,070 cd

Total Lumens (tested)

18,260 lm

Distribution / Dark-Sky Rating

Type V · 360° Zero Uplight Dark-Sky aligned

Type V is independent of wattage step within a class — the 50W and 35W settings of LPTP3W75 (and 100W / 125W settings of LPTP3W150) share this same polar shape, with luminous output scaling linearly. Coverage gap: 4000K and 5000K IES files pending from ALG (Type-V optical distribution is CCT-independent, so polar shape is photometrically representative).

Test Lab Source

IESNA LM-63-2002
LPTP3W150-US3-UB 3000K.ies · UTEST · BLC2210023E-A

Download IES bundle

Engineering · Anatomy

Crown the pole. Flip the switch. Fold for freight.

Eight engineering details that make Unity-I the right post-top for pedestrian-scale outdoor work — a dual-dip-switch panel that turns one SKU into nine settings, a foldable cantilever that ships flat at 120°, a frosted glass diffuser that eliminates pixelated source spots, and a Symmetry-I single-can mount that crosses the cityⒶRCH outdoor portfolio.

Datasheet pg 2 anatomy figure rendered as an annotated SVG — every callout matches a numbered detail in the specification. The cantilever-arch silhouette is Unity's visual signature; the foldable 120° hinge is its unique cost-angle for the cityⒶRCH ECO tier.

Compatible Accessories

Order Unity-I bare or with the photocell, surge, and pole-tenon parts that match the install. All accessories are factory-matched to the LPTP series and ship from the same cityⒶRCH accessory family used across Symmetry, OmniMax, Abbey, and Heritage — one inventory line for the whole portfolio.

Build Your Model

Configure Your Unity-I

Three required fields drive the LPTP order code. Selections build the SKU live — no checkout, no surprises. Required fields marked with *. Greyed-out options are not available with your current Wattage Class. See the legend in the Optional column for ★ / QS / MTO meanings.

0 of 3 required selected

Required

3 fields · all must be set

Wattage Class*—

Voltage*—

Finish*—

Optional

1 add-ons · pick any combination

Photocell—

★Factory-default ship configuration

QuickShip · 3-5 day lead

Made-to-Order · 4-6 week lead

Estimates · not guarantees · subject to availability · confirm before committing.

Live Preview Unity-I preview — black finish, 3/4 angle showing cantilever arch and frosted glass cap

Resolved SKU

LPTP[1W75|3W75|3W150]-[V]S3-[V][FIN]/[PS]

— deriving ship tier —

Max Lumens

—

Efficacy

—

CCT

—

Voltage

—

Optic · Beam

—

Peak Intensity

—

Finish

—

Compliance

UL · DLC Listed · RoHS · FCC · Wet Loc · IP65

Configuration incomplete. Resolve all 7 required fields to unlock pricing & submittal generation.

Pricing & Availability Generate Submittal PDF Request a Layout

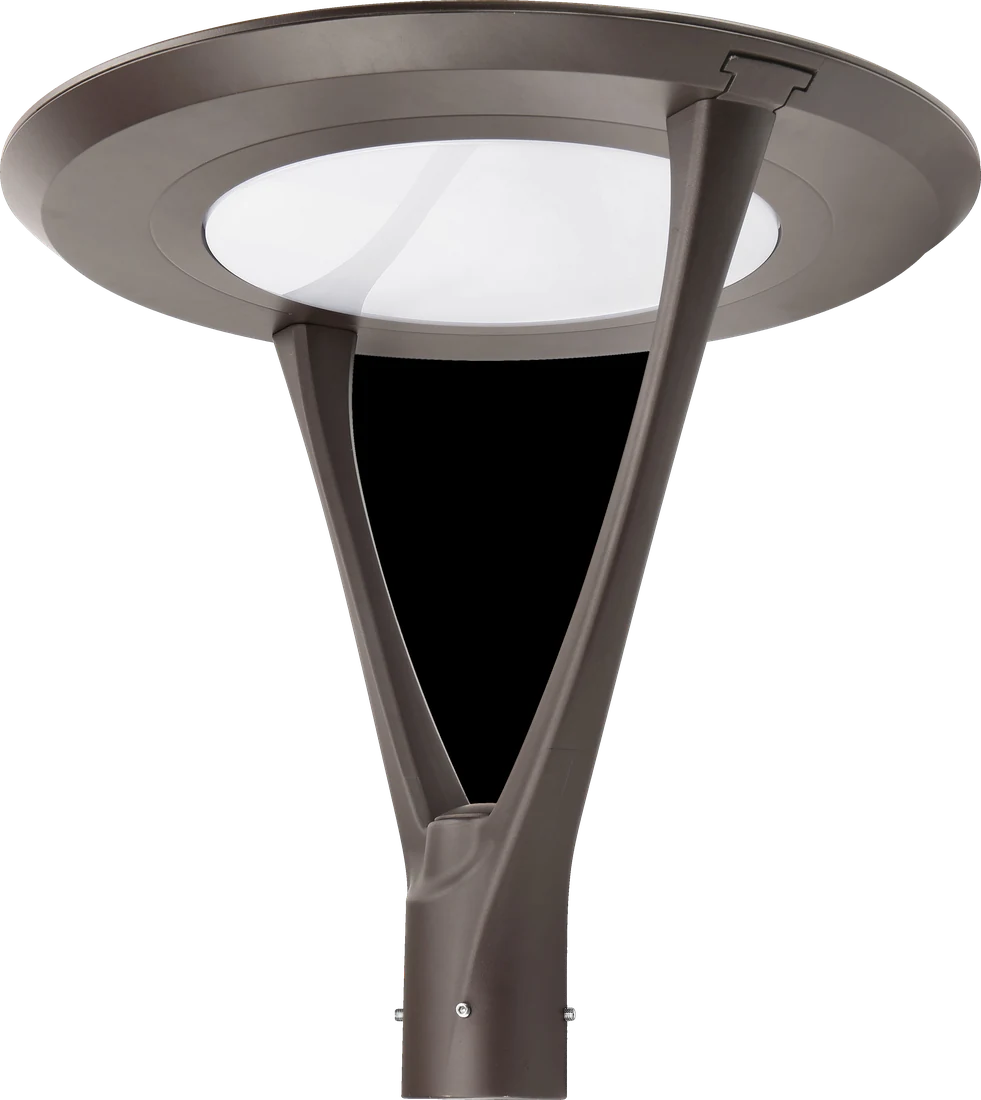

Meet the cityRCH outdoor family.

Unity-I is the ECO-tier post-top in the cityⒶRCH outdoor portfolio — four product families covering pedestrian post-tops, area roadway, and high-mast applications. Same factory, shared mount and accessory infrastructure (LSBX photocells, SQRD tenons, Symmetry-I single-can adapter). One inventory line for the whole site lighting package.
